When you are setting up for HVAC installation and AC service, the first decision is scope: do you only need to remove and install valve cores quickly, or do you also need to evacuate and charge the system? The four HVAC installation test instruments here cover very different parts of that workflow, from a compact valve-core tool to a full vacuum-pump manifold-gauge combo.
Quick take
- The HVAC AC R134A Valve Core High & Low Pressure Quick Remover Install Tool Set (CR-206) is the lowest-priced listed valve-core option, built around high/low pressure removal and installation.
- The Mastercool 58490 R134a Valve Core Remover/Installer Kit - Works Under Pressure is the highest-priced listing, with broad valve-core coverage.
- The OMT Combo 1/3HP 4CFM Air Vacuum Pump MANIFOLD GAUGE Set HVAC AC Refrigerant Kit bundles a vacuum pump with a manifold gauge, R134a quick couplers, and can taps.
- The HVAC AC Manifold Gauge Set w/ 3 Hoses R134a R1234yf R410a R22 Refrigerant Tool adds a digital display and multi-refrigerant charging capability.
Listed prices at a glance
| Product | Listed price | Price bar |
|---|---|---|
| HVAC AC R134A Valve Core High & Low Pressure Quick Remover Install Tool Set | USD 20.99 | |
| OMT Combo 1/3HP 4CFM Air Vacuum Pump MANIFOLD GAUGE Set | USD 88.99 | |
| HVAC AC Manifold Gauge Set w/ 3 Hoses R134a R1234yf R410a R22 Refrigerant Tool | USD 89.96 | |
| Mastercool 58490 R134a Valve Core Remover/Installer Kit | USD 144.95 |
Decision matrix
| If your priority is... | The listed-price match is... |
|---|---|
| Keeping valve-core costs low | HVAC AC R134A Valve Core High & Low Pressure Quick Remover Install Tool Set |
| Work across Standard, JRA, and Eaton cores | Mastercool 58490 R134a Valve Core Remover/Installer Kit |
| Evacuation and charging hardware in one kit | OMT Combo 1/3HP 4CFM Air Vacuum Pump MANIFOLD GAUGE Set |
| Digital readout for multiple refrigerants | HVAC AC Manifold Gauge Set w/ 3 Hoses R134a R1234yf R410a R22 Refrigerant Tool |
Product notes
HVAC AC R134A Valve Core High & Low Pressure Quick Remover Install Tool Set
This CR-206 set is the least expensive option at $20.99. It is a high/low pressure quick remover and installer tool set, listed in new condition. If your routine is mostly swapping R134a valve cores before evacuation, this is a direct way to add the tool without buying a full manifold gauge package. The limit is scope: it does not include gauges, hoses, a pump, or charging accessories, so the rest of the installation loop stays separate. Keep it as the lower-priced valve-core tool in this group, and reach for the larger kits when the job moves into evacuation or charging.

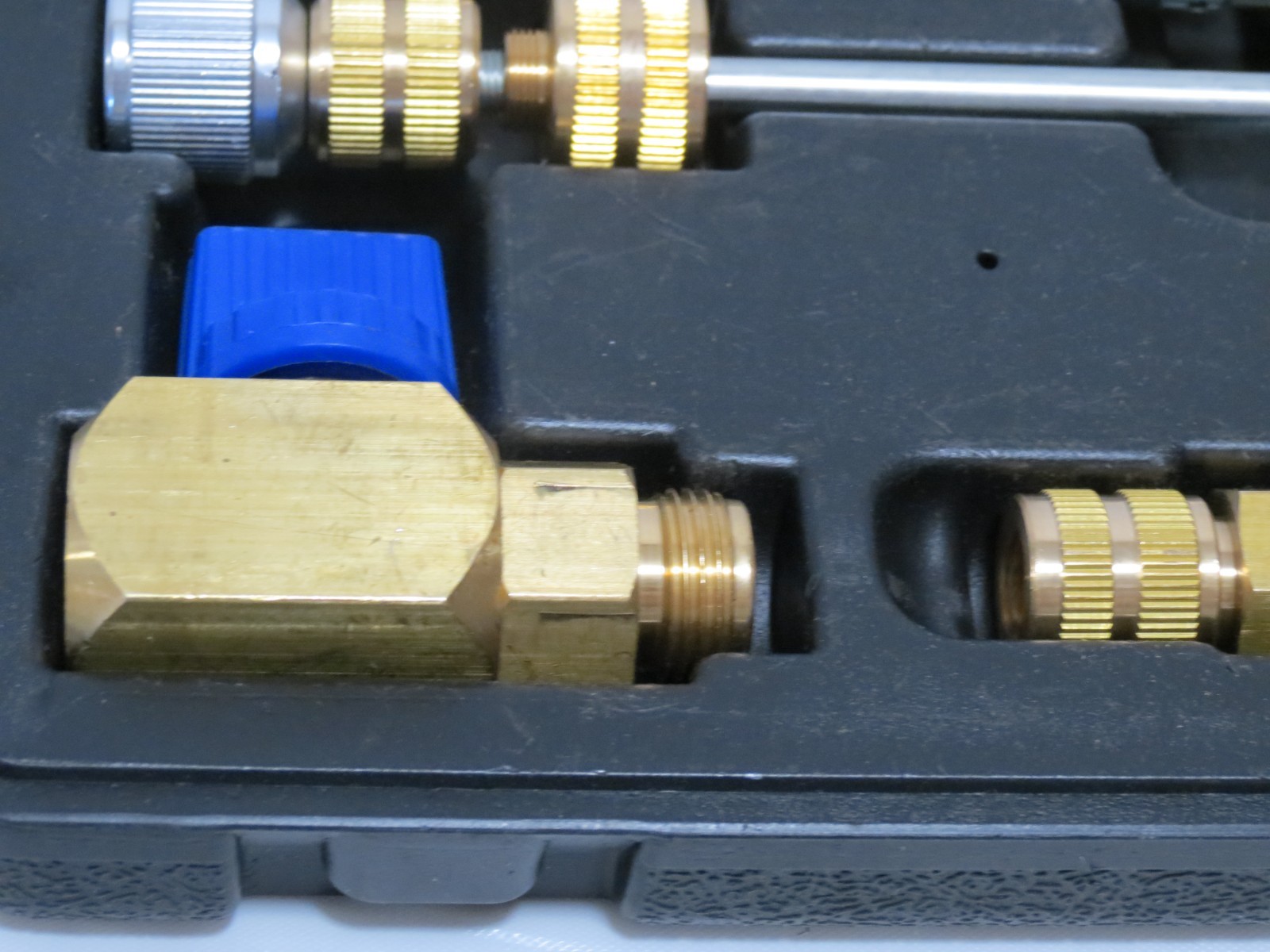

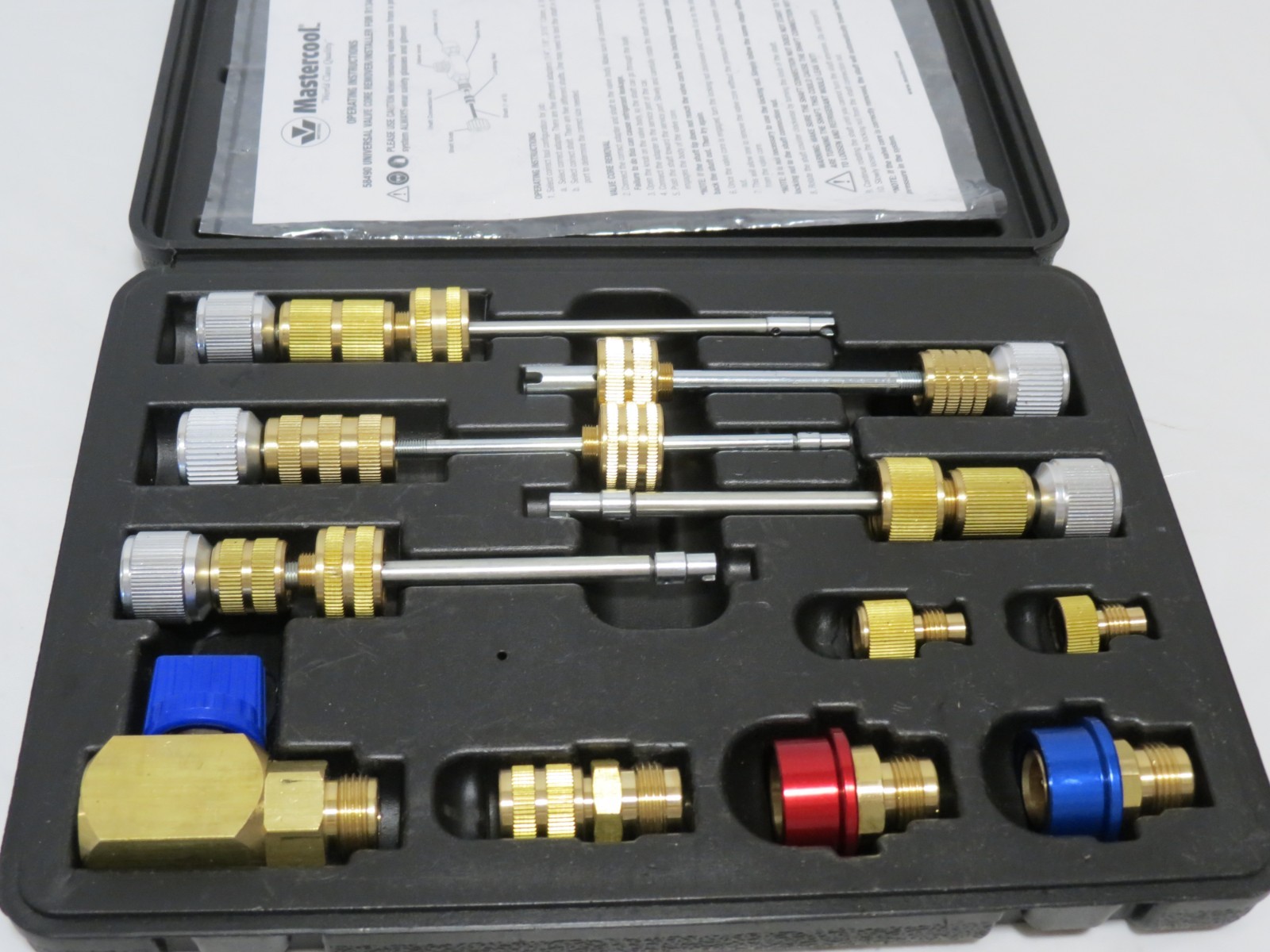

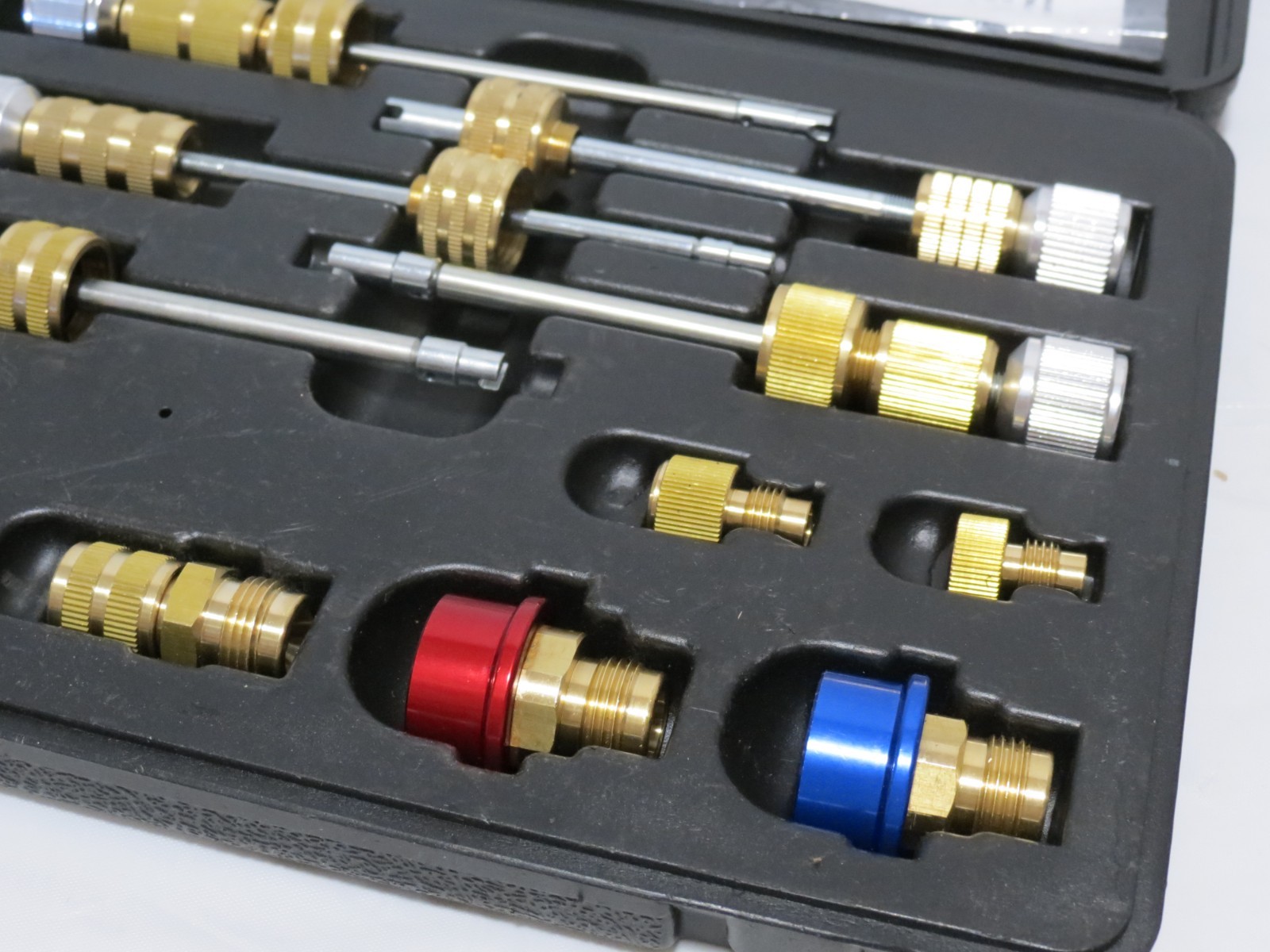

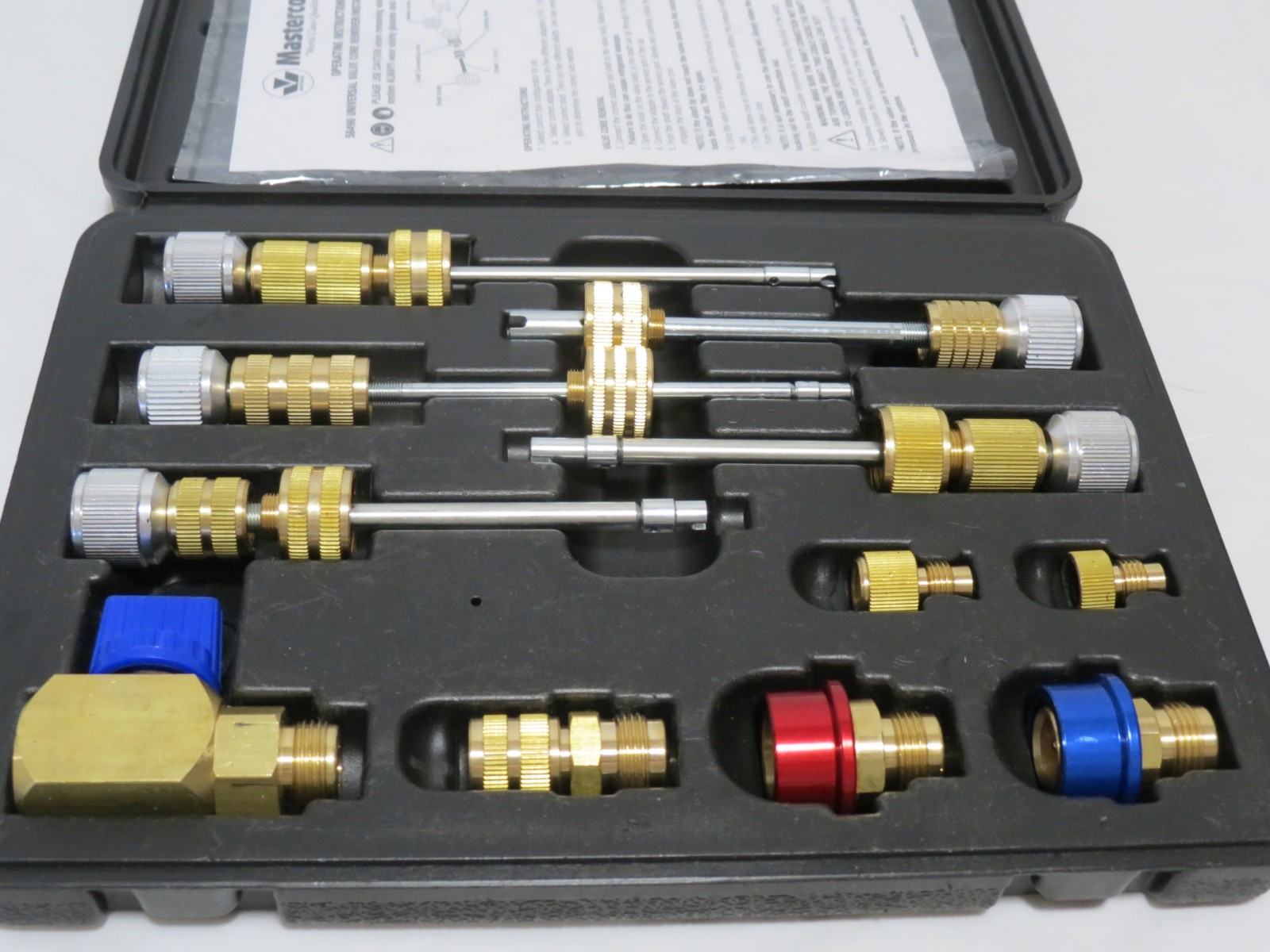

Mastercool 58490 R134a Valve Core Remover/Installer Kit - Works Under Pressure
The Mastercool kit sits at the top of the price range at $144.95. It operates under pressure and covers Standard, JRA, and Eaton cores, with shafts, adapters, R134a fittings, and a case included. That makes it the more complete valve-core kit in this group if you service more than one core style. The trade-off is the condition note: this particular listing is New - Open box, and the listed price is well above the other core set. Use it when your service range justifies the extra core adapters and under-pressure handling.
OMT Combo 1/3HP 4CFM Air Vacuum Pump MANIFOLD GAUGE Set HVAC AC Refrigerant Kit
This Orion Motor Tech combo moves past valve cores into the evacuation side of installation. At $88.99 it pairs a 1/3 hp air vacuum pump with a manifold gauge set, R134a quick couplers, and can taps, and it carries a 4 CFM evacuation speed and 37.5 microns ultimate vacuum. That makes it a broader starter bundle than the two valve-core tools, since you get the pump plus the gauge hardware in one package. The limitation is that the supplied quick couplers and can taps are aimed at R134a service, so digital readouts and broader refrigerant coverage are not part of this kit. If you already own a digital gauge, this combo fills the vacuum side without adding another display head.
HVAC AC Manifold Gauge Set w/ 3 Hoses R134a R1234yf R410a R22 Refrigerant Tool
This digital manifold gauge set is listed at $89.96, almost the same price as the OMT combo, but it focuses on the charging side. It includes an LCD digital display, leak test, auto power off, 88 refrigerant references, a pressure range of -14.5 to 800 PSI, and ±0.5% FS accuracy, and it covers R134a, R1234yf, R410a, and R22 in the product name. The kit comes with three hoses, couplers, can taps, and blue/red/yellow service hoses. It needs three AAA batteries, which are not included. Choose it when you want a digital charging readout across multiple refrigerants; plan to add a vacuum pump separately if evacuation is part of your routine.
Final recommendation by use case
If the job stops at valve-core service, the HVAC AC R134A Valve Core High & Low Pressure Quick Remover Install Tool Set gives you the lowest listed price in this comparison. If you work with multiple core styles, the Mastercool 58490 R134a Valve Core Remover/Installer Kit is the more complete core package. For evacuation plus charging hardware in one purchase, the OMT Combo covers that pairing. And if you need a digital multi-refrigerant charging gauge, the HVAC AC Manifold Gauge Set is the one to carry. Match the tool to the amount of installation and test work you actually perform: a single-purpose core tool at the lower end of the price spread keeps the spend low, while the higher-priced Mastercool kit earns its place when core variety is on the schedule.
