When you're putting together or servicing a refrigeration system, the line components between the compressor and the evaporator can make the difference between a clean, quiet, serviceable setup and one that leaves you chasing leaks, moisture, or noise. The challenge is that refrigeration valves, pumps, and line components cover very different jobs: some filter the refrigerant, some serve as mufflers, and some are unions for easy service access. So before you order, you need to know which job your line actually needs done.
Quick Take
The four parts here split into three jobs. The AC&R Components S-6407 is the muffler option here. The Ranco 163 and Ranco 083 are liquid-line filter driers that share the same refrigerant compatibility and filtration approach but differ in filter-drier capacity and body length. The RectorSeal 87018 PRO-Fit is the easy service-disconnect option. Start by matching the job to the line, then choose the fitting size. If you're not sure which job your system needs, think about the line location: a discharge line points to a muffler, a liquid line points to a filter drier, and a service point points to a union.
Listed Price Comparison
Here's how the listed prices stack up. The spread runs from $12.99 for the RectorSeal union to $45.89 for the AC&R muffler. The two Ranco filter driers land in between, with the 163 priced a bit above the 083.
| Product | Listed Price | Relative Price Bar |
|---|---|---|
| AC&R Components S-6407 Discharge Line Refrigeration Muffler 7/8" ODS | USD 45.89 | |
| Ranco 163 Liquid Line Filter Drier 3/8 Flare Refrigeration Air Conditioning | USD 28.12 | |
| Ranco 083 Liquid Line Filter Drier 3/8 Flare Refrigeration Air Conditioning | USD 25.79 | |
| RectorSeal 87018 PRO-Fit 1/4" Quick Connect Union Refrigerant Line | USD 12.99 |
Decision Matrix
Use this as a starting point. It groups the four components by the problem they solve, so you can quickly see which part deserves a closer look.
| If you need... | Choose... | Why... |
|---|---|---|
| Reduce noise or pulsation in the discharge line | AC&R Components S-6407 | The muffler in this group |
| Remove moisture and particles from a liquid line | Ranco 163 or Ranco 083 | Both are filter driers with 20-micron filtration |
| Quick service access on a refrigerant line | RectorSeal 87018 PRO-Fit | Union-style connector made for disconnects |
Product Notes

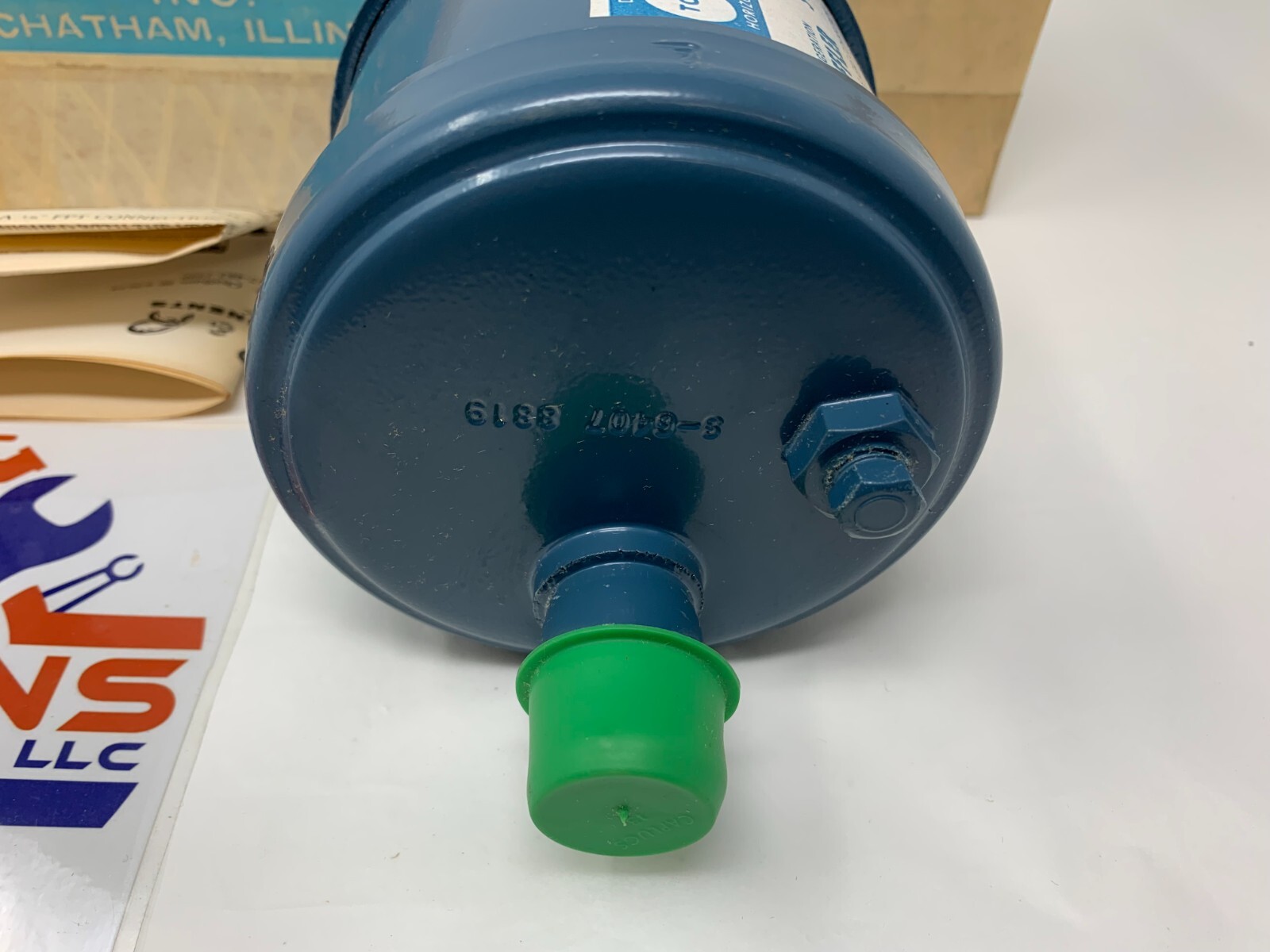

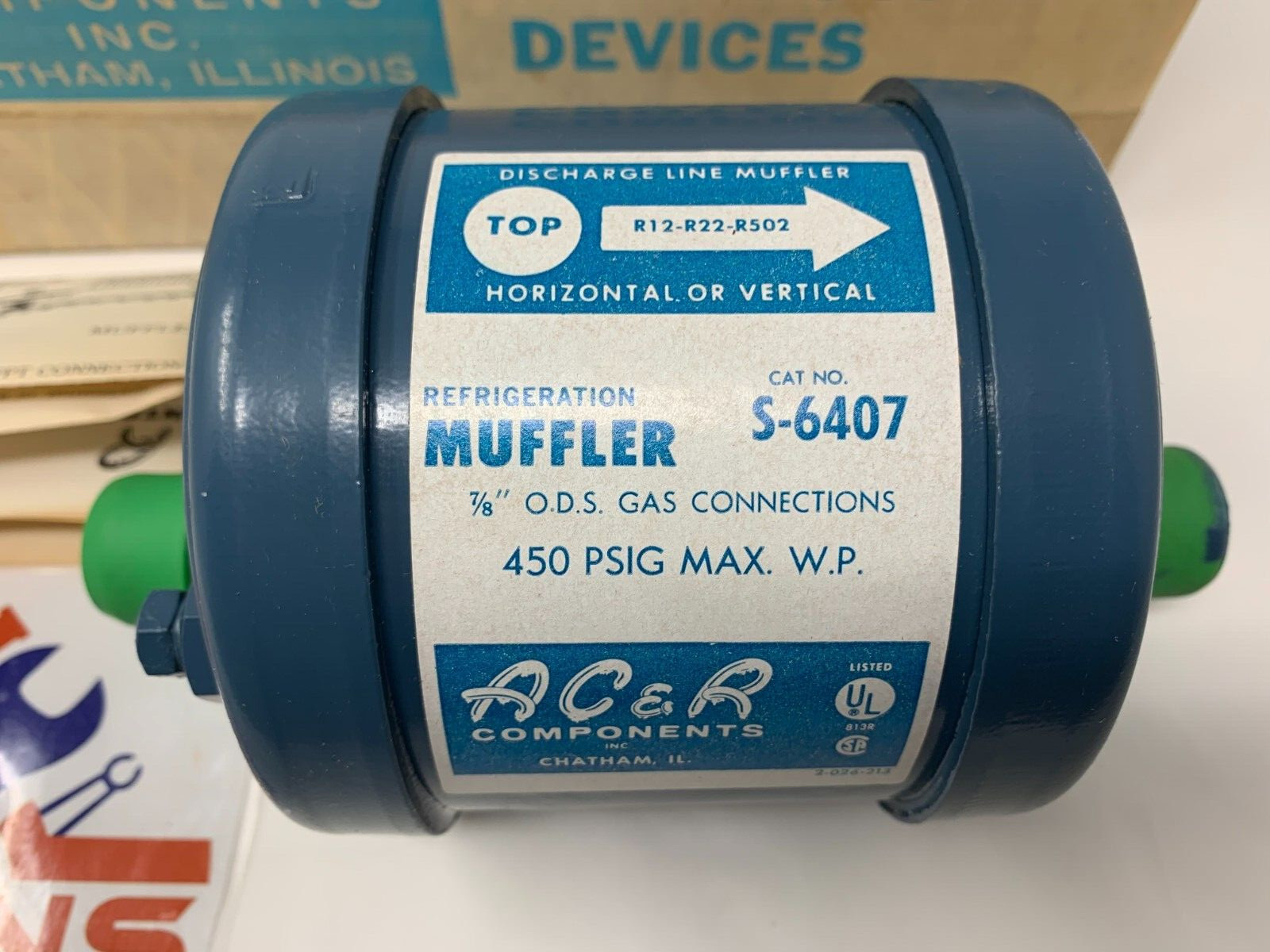

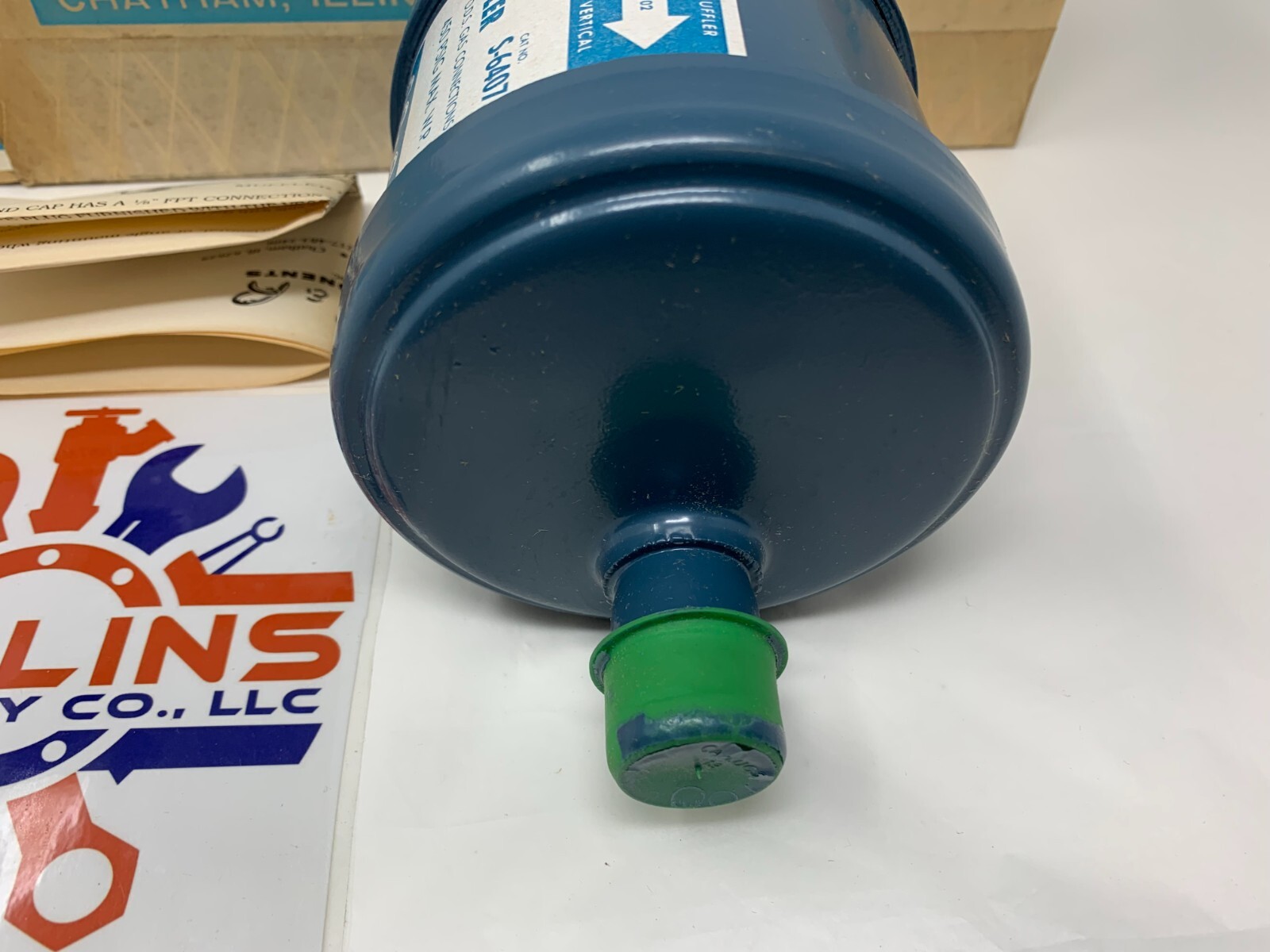

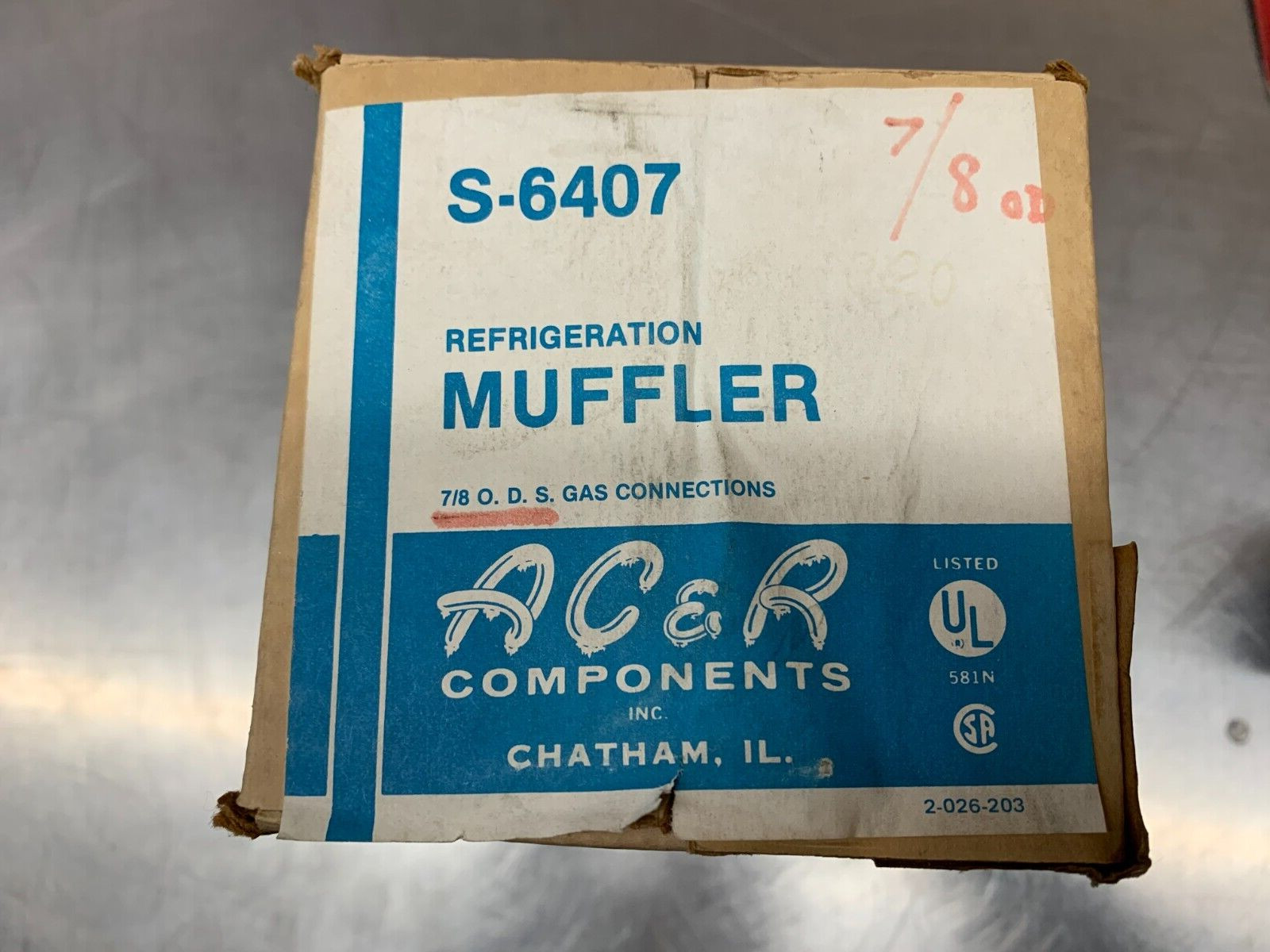

AC&R Components S-6407 Discharge Line Refrigeration Muffler 7/8" ODS
Choose this AC&R component when your line setup calls for a discharge-line muffler. Its role in this group is to handle the discharge line, and it's a new U.S.-made part. It's the dedicated muffler among these four options, so it's the clear pick when that specific function is missing. The limitation is that it's a muffler, not a filter drier or union, so it won't remove moisture, trap contaminants, or give you service access. If your issue is liquid-line cleanliness or quick disconnects, you'll want one of the other components here.
Ranco 163 Liquid Line Filter Drier 3/8 Flare Refrigeration Air Conditioning
This is the larger of the two Ranco filter driers. Its 16-cubic-inch capacity gives you more desiccant and filter material in a liquid line, and it uses flare connections for installation. It's compatible with R22, R134A, R404A, R407C, R410A, R502, R507, and R290, and it filters down to 20 microns. That list covers a broad range of common refrigerants, so this drier can work across many systems. The trade-off: at 8 inches long, it takes up more space than the 083, so it's not the first choice for tight line layouts. Choose it when you want the larger moisture-removal buffer and have room for a longer drier.
Ranco 083 Liquid Line Filter Drier 3/8 Flare Refrigeration Air Conditioning
The 083 is the more compact counterpart to the 163. It uses the same flare-style hookup and the same filtration approach, but with 8 cubic inches of filter-drier capacity rather than 16. That smaller size makes it easier to fit into a tighter liquid line, and the one-year replacement warranty adds a little peace of mind. Like the 163, it handles the same refrigerants. The limitation is the reduced capacity: if you want the largest moisture-removal buffer in this pair, the 163 is the stronger choice. For a tighter layout, that shorter body is a real advantage.
RectorSeal 87018 PRO-Fit 1/4" Quick Connect Union Refrigerant Line
This is the part to reach for when you want service work to be less disruptive. The union lets you open a line and reconnect it easily, saving time on maintenance and repairs. It's a new U.S.-made part, and its purpose is connection rather than conditioning. The limitation is that it doesn't filter the refrigerant or act as a muffler. Its job is connection, not filtration or noise control, so pair it with the right filter drier or muffler if those are also needed. That's a straightforward division of labor: use the union for access, and use the other components for conditioning.
Final Recommendation by Use Case
- For discharge-line noise or pulsation: AC&R Components S-6407.
- For liquid-line moisture and contaminant protection: choose the Ranco 163 when you want the larger filter-drier capacity; choose the Ranco 083 when a more compact body fits your layout.
- For quick service disconnects: RectorSeal 87018 PRO-Fit.
