Match the Right HVAC Refrigeration Compressor Part to Your Repair

Choosing between parts that cost $20, $65, and $220 for an HVAC refrigeration compressor can feel like comparing three separate projects. The real question is what your system actually needs: a replacement electrical plug, a used compressor, or a crankcase heater. Those three needs point to completely different purchases, so the decision starts with the job, not the price.

Quick take

• If you need to restore the 3-pin electrical connection to a compressor, focus on the HVAC Compressor Wiring Harness Plug 100213-03.
• If you need a used Copeland scroll compressor, weigh the ZP16K5E-PFV-13R against the ZP25K5E-PFV-130.
• If your compressor already runs but needs a crankcase heater, look at the Teleflex OEM Belly-Band Crankcase Heater 240V.

What to weigh first

Before sorting parts by price, decide whether the compressor itself is the broken component. If it is, a wiring harness or crankcase heater won't bring it back. If the compressor still runs but the plug is damaged or the crankcase needs heat, then the smaller parts are built for that specific job.

Listed price comparison

Decision matrix

Product notes

HVAC Compressor Wiring Harness Plug 100213-03 SA8958 3-Pin SCR AC Connector

If the compressor is already in place and the problem is the electrical connection, this harness is the most direct fix in the group. It is a new molded 3-pin SCR AC connector with the SA8958 reference in the title, and it includes pre-stripped, terminal-ended black, red, and yellow wires. That makes the wiring portion easier to finish without hunting for pigtails. The limitation? It is only the harness, not the compressor. If the sealed unit itself is the failure, this will not solve that. The 3-pin SCR AC connector is specific, so the wiring side needs to match your compressor's plug.

Emerson Copeland / ZP16K5E-PFV-13R / HVAC Compressor / Tested

This used Copeland scroll compressor is one of two compressor options in the group, and the title says "Tested." It is listed as a 1-phase, black, US-origin unit with the model number ZP16K5E-PFV-13R. If your system is built around that exact model, this is the part to compare first. The main limitation is that it is used, and it shares the same listed price and general profile with the ZP25K5E-PFV-130. Because both Copeland compressors are listed as tested and used, the price alone won't separate them.

Emerson Copeland / ZP25K5E-PFV-130 / HVAC Compressor / Tested

The ZP25K5E-PFV-130 is the other tested, used Copeland compressor in the comparison. Its listed specifications include 208/230 V and 1-phase operation, which is helpful if your system runs on that voltage. It is described as black with US origin, and the model number appears in the title. If you need the ZP25 model, this is the option to put next to the ZP16 when you compare. The limitation is the same as the other Copeland: both are used units at the top of the listed price range, so the decision between them comes down to which model number your compressor requires.

OEM HVAC Compressor Belly-Band Crankcase Heater 240V. 142-840018-034

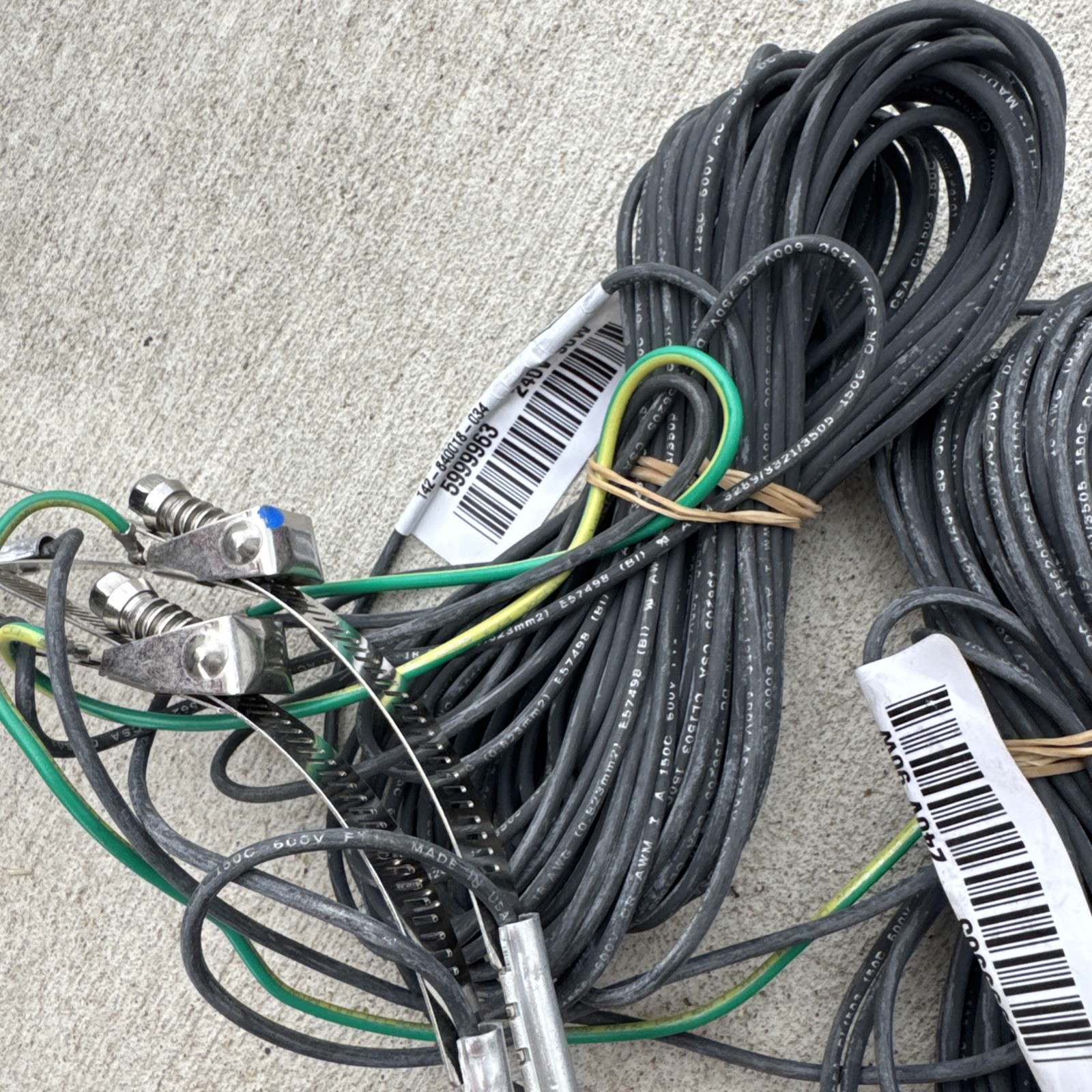

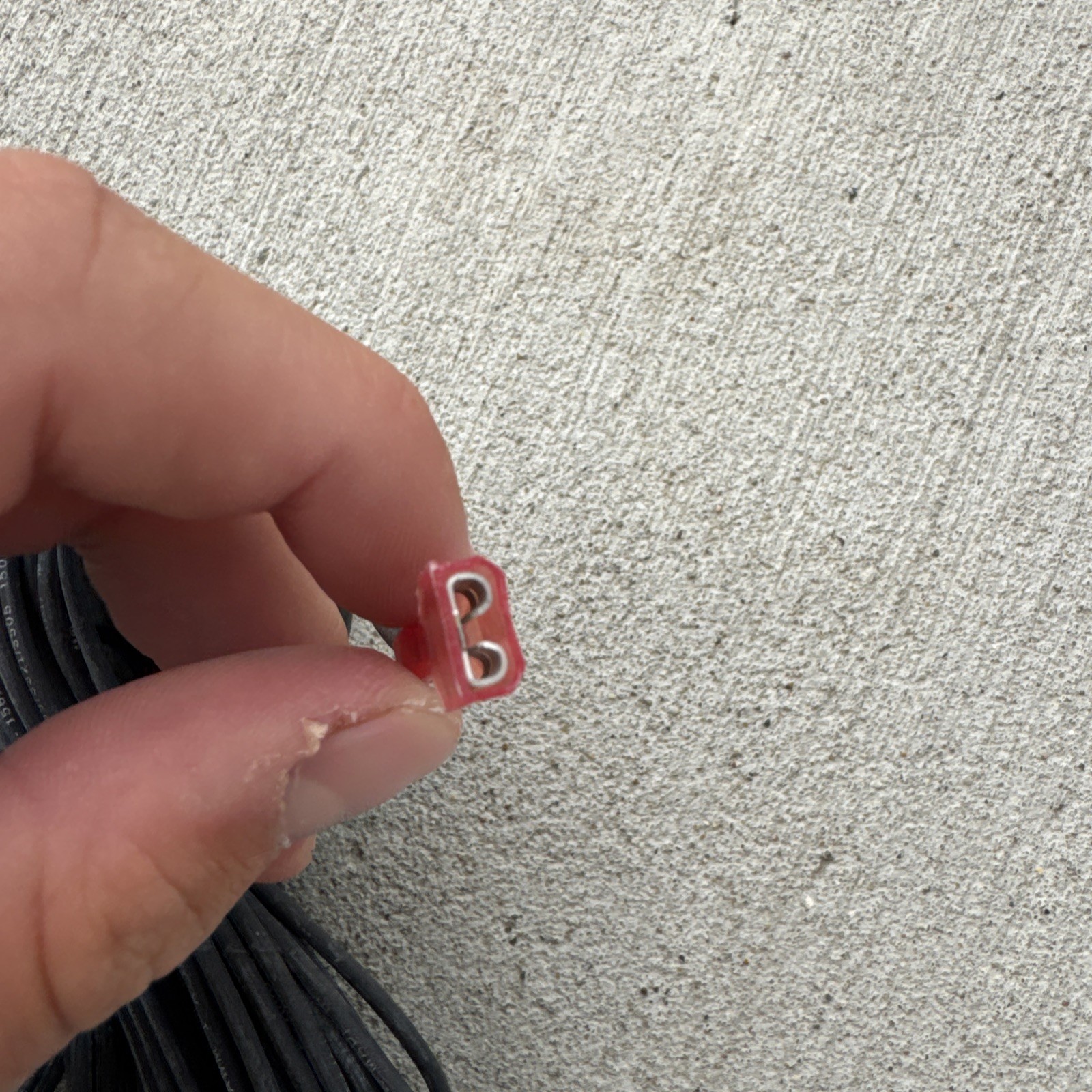

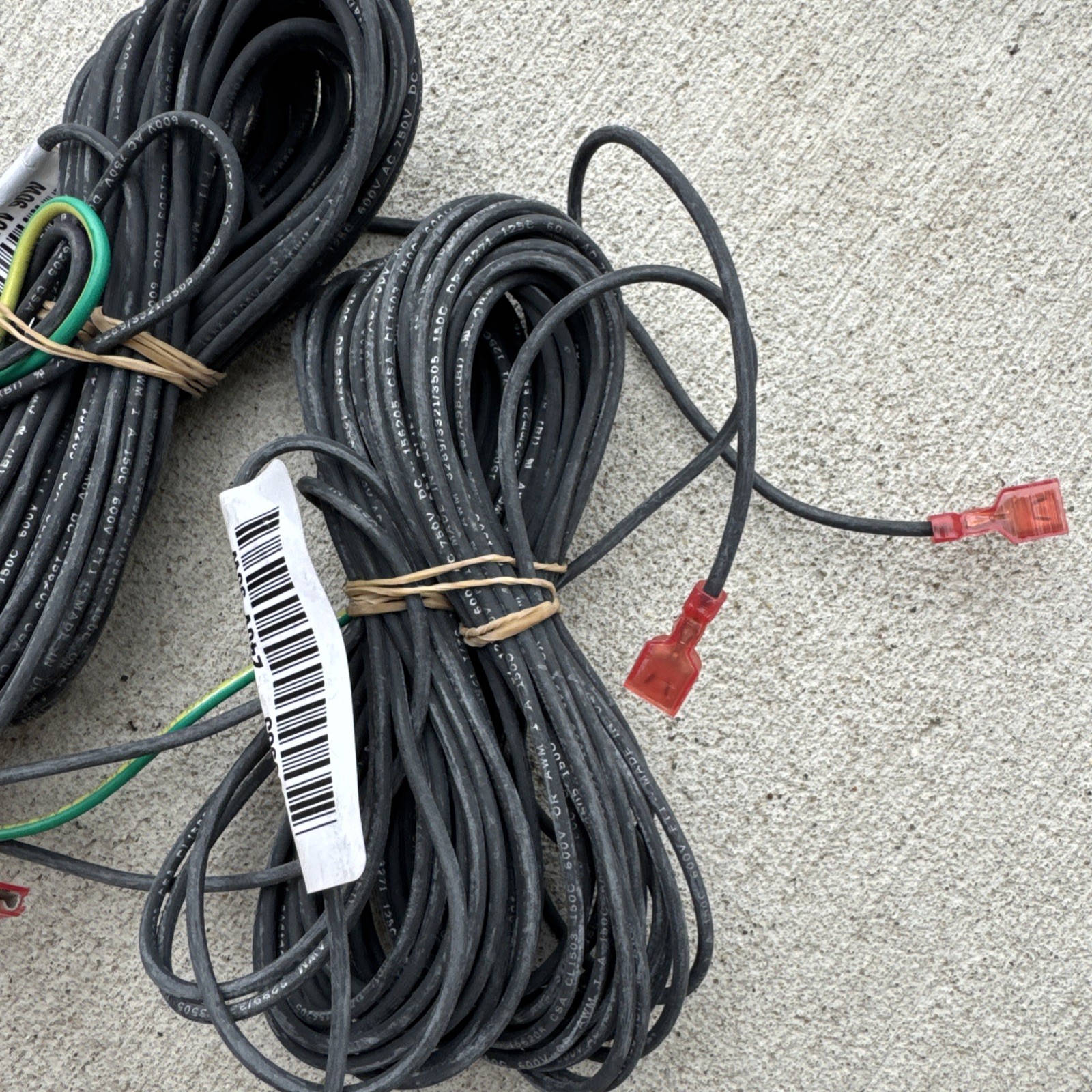

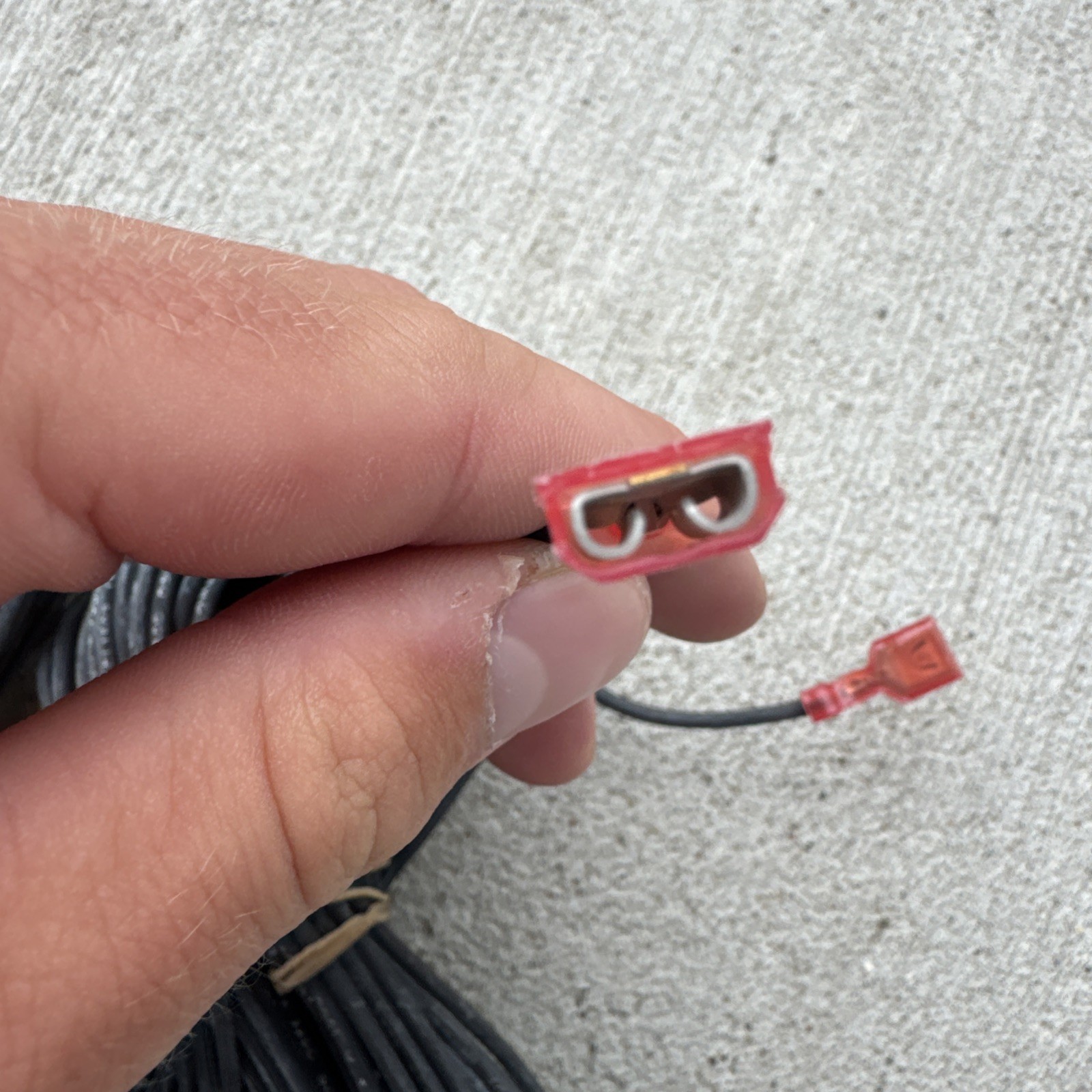

If the compressor itself is the part you want to keep, this Teleflex OEM belly-band crankcase heater is the heater to consider. The title points to a 240V unit, and the belly-band style is named in the title. It is listed as used, so the price reflects a pre-owned part rather than a new one. Its limitation is that it is not a compressor and not a wiring harness; it is a heater that works alongside the compressor. That is why it fits best when the compressor is already there and only crankcase heat is missing.

Final recommendation by use case

• Need a compressor wiring plug: Choose the HVAC Compressor Wiring Harness Plug 100213-03 SA8958.
• Need a used Copeland compressor: Compare the ZP16K5E-PFV-13R and ZP25K5E-PFV-130, and match the model number to your system.
• Need crankcase heat: Choose the OEM HVAC Compressor Belly-Band Crankcase Heater 240V if your compressor is already in place.
