Quick Take
Choosing a circulation pump for water heaters hydronic equipment starts with the job, not the wattage. The four pumps here range from $51.99 to $325.00, and they are not interchangeable. A small hot-water recirculation loop with threaded fittings needs a different pump than a hydronic heating system with flanged connections. The 110V pump with adjustable speed is built for a simple loop, while the Grundfos UPS26-99FC is built for higher flow and head. In between, there is a dishwasher-specific Bosch circulation pump and a Grundfos-compatible recirculating pump with a timer and line cord. Match the connection type and the flow range first; the listed price will make more sense after that.
Listed Price Comparison
| Product | Listed Price | Price Bar | Typical Use |
|---|---|---|---|
| Hot Water Circulation Pump Circulator Pump 93W 110V NPT3/4\" to 1/2NPT | USD 51.99 | Small hot-water loop with threaded fitting and speed switching | |
| 1 YEAR WARRANTY OEM Bosch Dishwasher Circulation Pump 12008381 | USD 67.97 | Bosch dishwasher circulation replacement | |
| For Grundfos Hot Water Re-Circulating Pumps UP15-10SU7P TLC 595916 1/25 HP 115V | USD 94.99 | Recirculating setup with built-in timer and line cord | |
| New Grundfos UPS26-99FC 115v Water Circulator Pump / Boiler Pump 1/6 HP 52722512 | USD 325.00 | Higher-flow hydronic heating or boiler circulation |
Decision Matrix
- Need a simple 110V hot-water loop with threaded plumbing and adjustable output? The $51.99 pump is the smallest listed price and adds a 46/67/93W speed switch.
- Need a Bosch dishwasher circulation pump? The $67.97 used OEM pump matches part 12008381 and comes with a stated one-year warranty.
- Need a timer in the pump itself? The $94.99 Grundfos-compatible UP15-10SU7P lists a built-in timer and line cord, so it is ready to plug in.
- Need more flow and head for hydronic heating? The $325 Grundfos UPS26-99FC offers three speeds, flanged connections, and higher capacity.
Product Notes
Hot Water Circulation Pump Circulator Pump 93W 110V NPT3/4\" to 1/2NPT

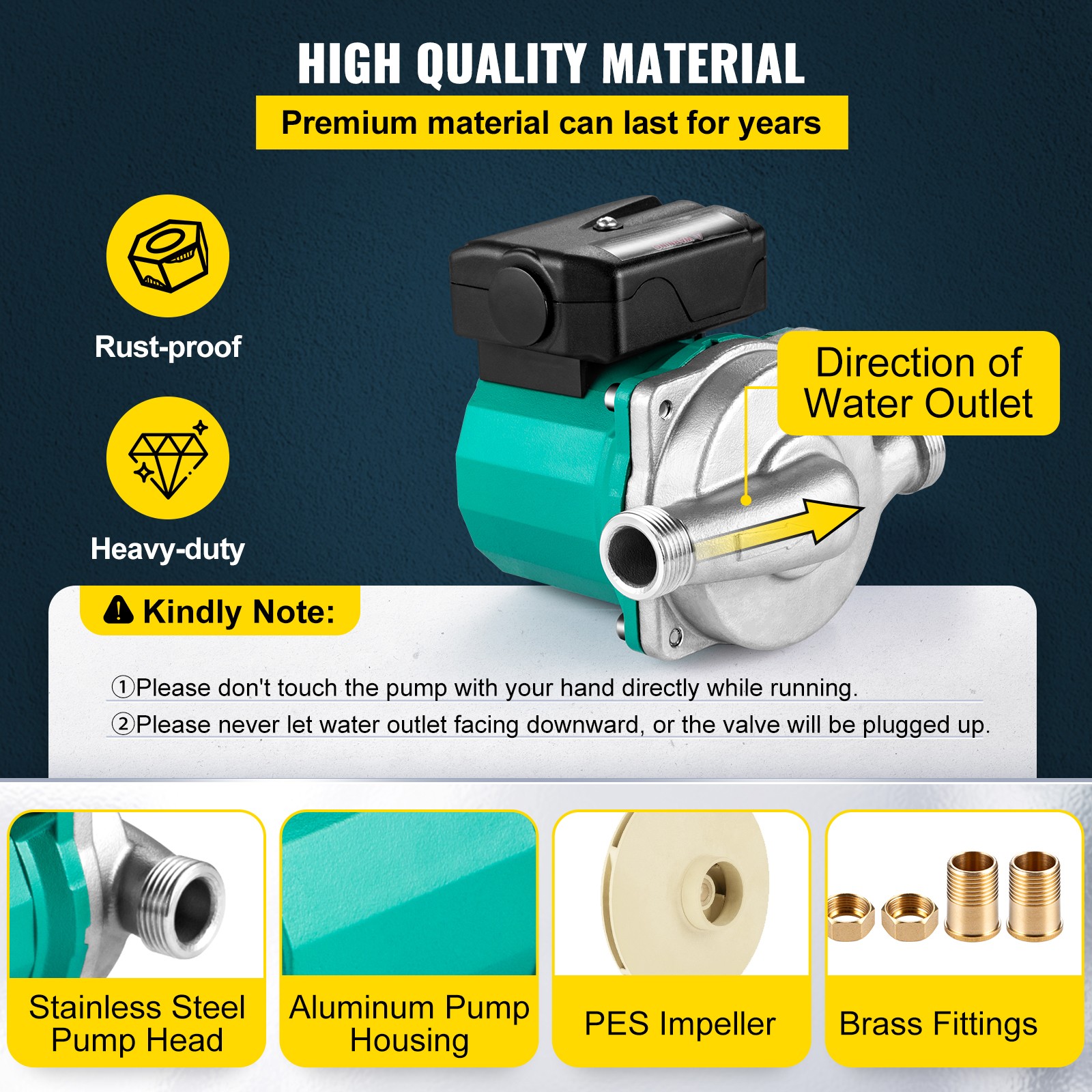

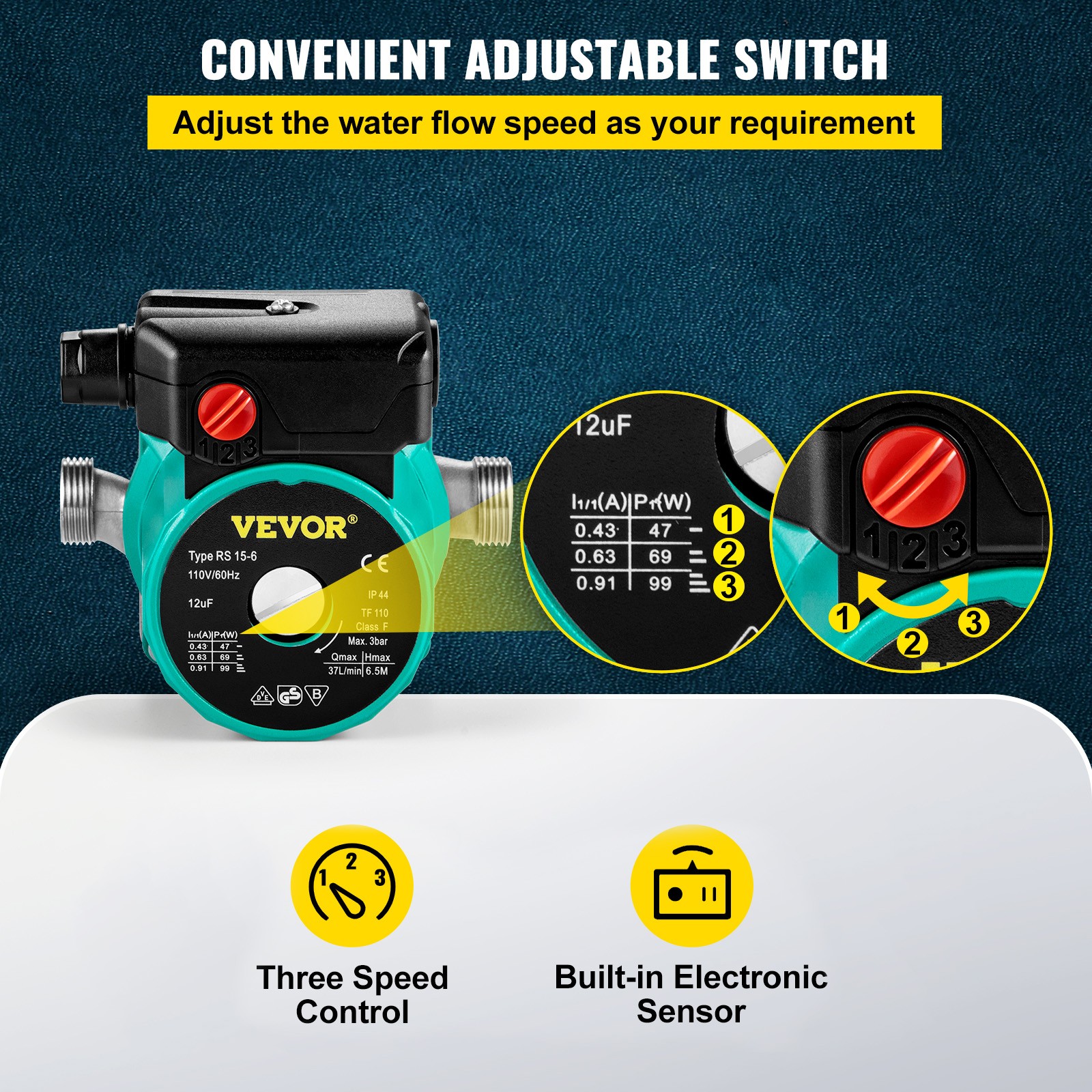

At $51.99, this VEVOR circulation pump is the least expensive listed option. It is a 110V unit with a stainless steel pump head, aluminum housing, and PES impeller, and the listing includes a three-power control switch at 46, 67, and 93W. That switch gives you a concrete way to reduce flow when demand is low. The included brass adapter is listed as NPT 3/4\" to 1/2NPT, so the pump targets threaded plumbing connections rather than flanged pipe. Choose it when you need an adjustable circulator for a standard threaded loop. The limitation is the fixed adapter sizing: if the loop uses a different fitting, the pump is not the fit.

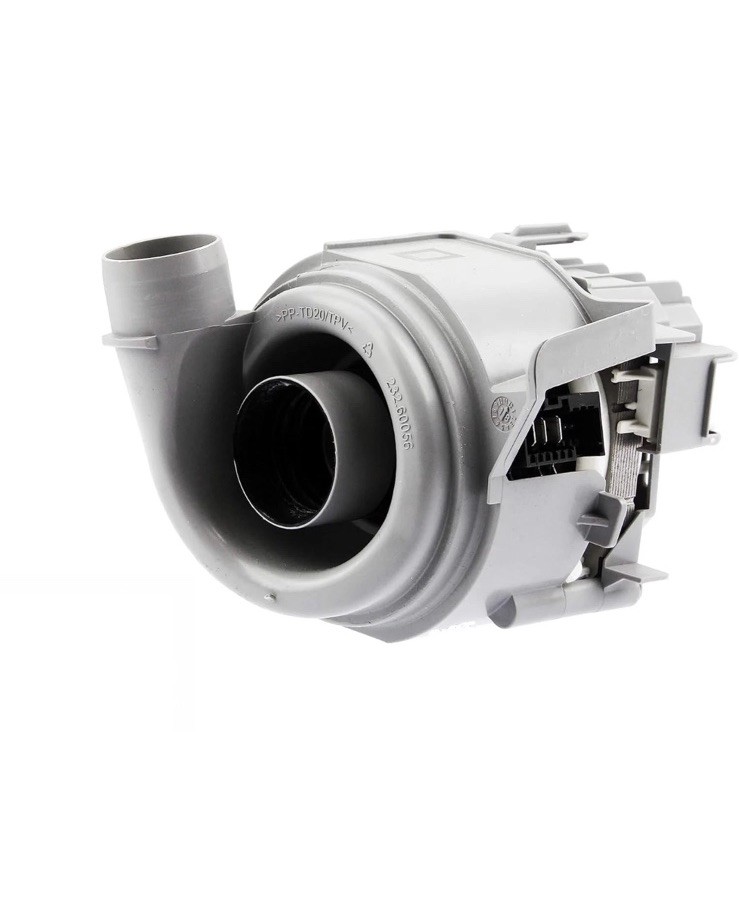

1 YEAR WARRANTY OEM Bosch Dishwasher Circulation Pump 12008381
This is the only dishwasher-specific pump in the group, listed at $67.97. The title points to an OEM Bosch circulation pump for part 12008381, and the attributes match it to a Bosch dishwasher model SHPM78Z55N. Condition is used, and the listing describes it as refurbished and inspected, so cosmetic signs of previous use are possible. The one-year warranty is a useful detail for a used replacement part. Choose it if you are repairing a Bosch dishwasher and want the matching OEM circulation pump rather than a generic substitute. The limitation is its appliance-specific role: the part is for dishwasher circulation, not a hydronic heating loop.
For Grundfos Hot Water Re-Circulating Pumps UP15-10SU7P TLC 595916 1/25 HP 115V
The $94.99 Grundfos-compatible recirculating pump brings two features that make it convenient for a residential loop: a built-in timer and a line cord. That means the pump can be scheduled without a separate timer module and can be positioned for a corded setup. It is listed as new, with part reference UP15-10SU7P and model 595916. Cast iron is the stated body material, and the listing calls out that the pump is non-submersible. Choose it when you want a timer-based replacement in the Grundfos water system package format. The limitation is placement: because it is non-submersible, it should not sit in water.
New Grundfos UPS26-99FC 115v Water Circulator Pump / Boiler Pump 1/6 HP 52722512
The highest listed price in the group is the new Grundfos UPS26-99FC at $325. This is a 115V, 1/6 HP, three-speed circulator with cast iron construction and flanged connections. Its listed range goes up to 33 GPM and 29 feet of head, with a stated pressure rating of 145 psi. That points to hydronic heating, radiant loops, fan coil, and solar-type systems where a small recirculating pump may not have enough capacity. Choose it when you need that kind of flow and head and a flanged hookup. The limitation is the price and scale: you are paying for a heavier hydronic pump, and a simple hot-water timer pump would cover a smaller job for less.
Final Recommendation
The right pump depends on the loop. For a basic 110V hot-water circulation loop with threaded fittings, the $51.99 speed-switch pump is the direct choice. For a Bosch dishwasher repair, the $67.97 used OEM pump with a stated one-year warranty matches part 12008381. For a Grundfos-style recirculating setup with a built-in timer and cord, the $94.99 UP15-10SU7P replacement keeps things self-contained. For higher-flow hydronic heating or boiler circulation, the $325 Grundfos UPS26-99FC is the pump that has the capacity to do that job.
