When you're working on ventilation ducting and air distribution, the return air box is the metal transition that sits between the furnace stand and the duct run. It has to line up with the opening on the stand, and the four options below all come from the same ductwork lineup. The listed prices run from $169 to $175, so the practical decision comes down to dimensions and the space where the box will sit.
Quick take
All four kits are new, in Silver, made from 26-gauge galvanized steel with 22-gauge support rails, and compatible with a wide range of central HVAC equipment. The 17.5"x21"x11" and 14.5"x23"x10" both list at $169, while the 21 1/4 "x21 1/4"x 11" and 21"x28"x11" list at $175. Each kit includes four sides, a bottom cap, four slips, foil tape, and sheet metal screws, plus assembly instructions and a video walkthrough.
Listed price comparison
| Product | Listed price | Price bar |
|---|---|---|
| 17.5"x21"x11" tall furnace stand return air box duct hvac | USD 169.00 | |
| 14.5"x23"x10" tall furnace stand return air box duct hvac | USD 169.00 | |
| 21 1/4 "x21 1/4"x 11" tall furnace stand return air box duct hvac | USD 175.00 | |
| 21"x28"x11" tall furnace stand return air box duct hvac | USD 175.00 |
Decision matrix
| Product | Footprint | Height | Key difference |
|---|---|---|---|
| 17.5"x21"x11" | 17.5" x 21" | 11" | Narrower rectangular footprint |
| 21 1/4 "x21 1/4"x 11" | 21.25" x 21.25" | 11" | Square footprint |
| 14.5"x23"x10" | 14.5" x 23" | 10" | Shortest height and narrowest width |
| 21"x28"x11" | 21" x 28" | 11" | Largest footprint |
Product notes
#### 17.5"x21"x11" tall furnace stand return air box duct hvac

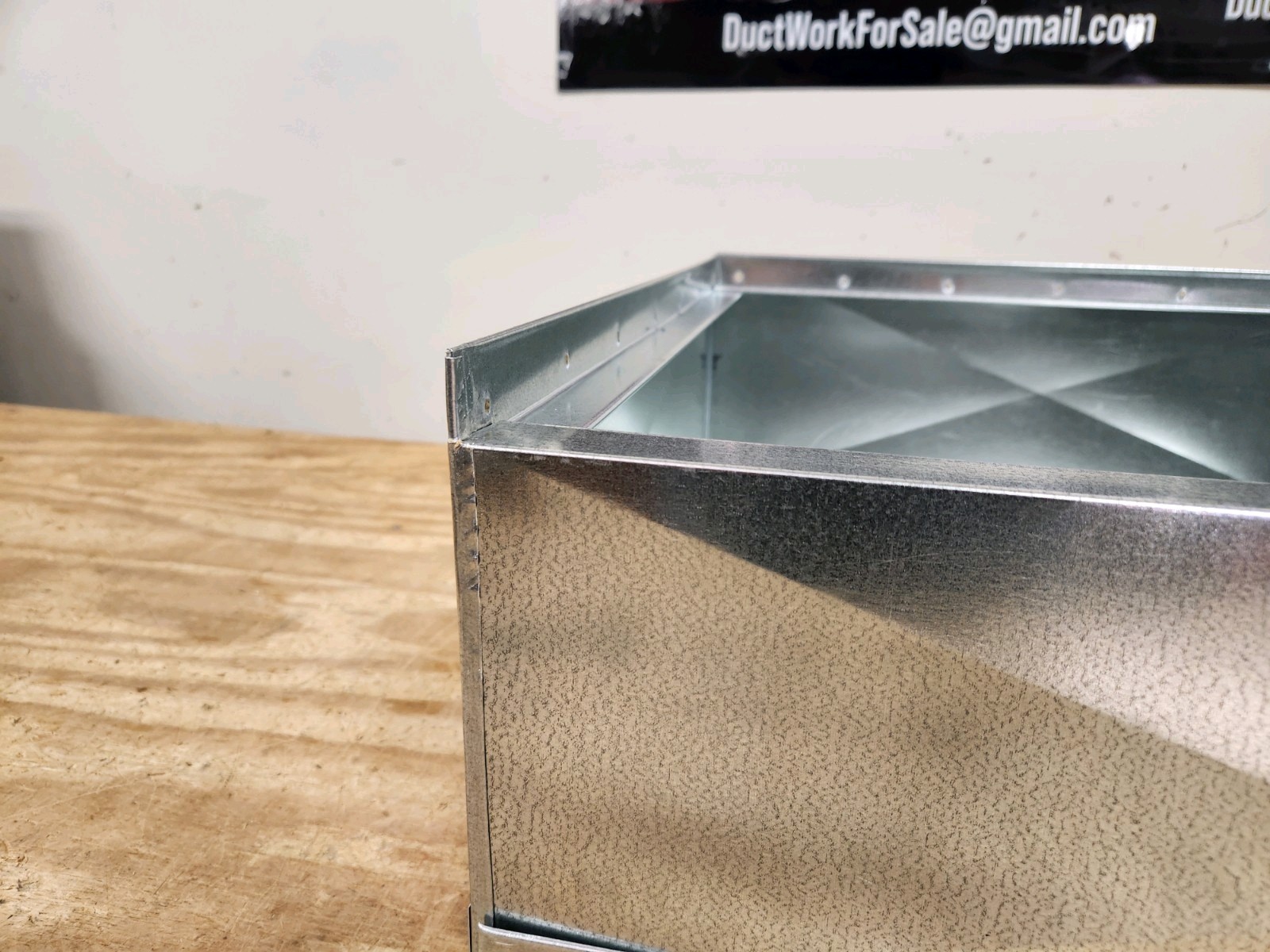

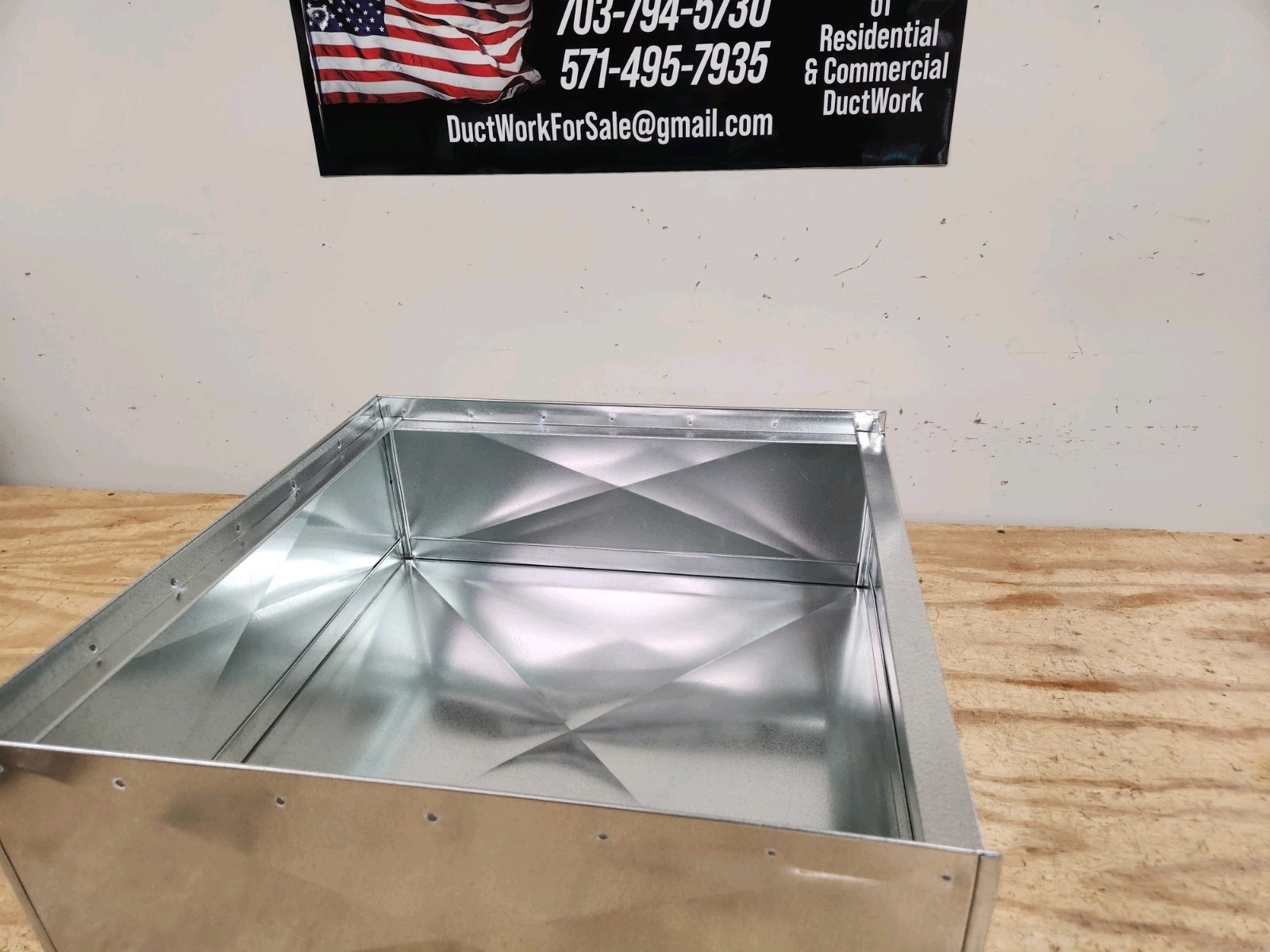

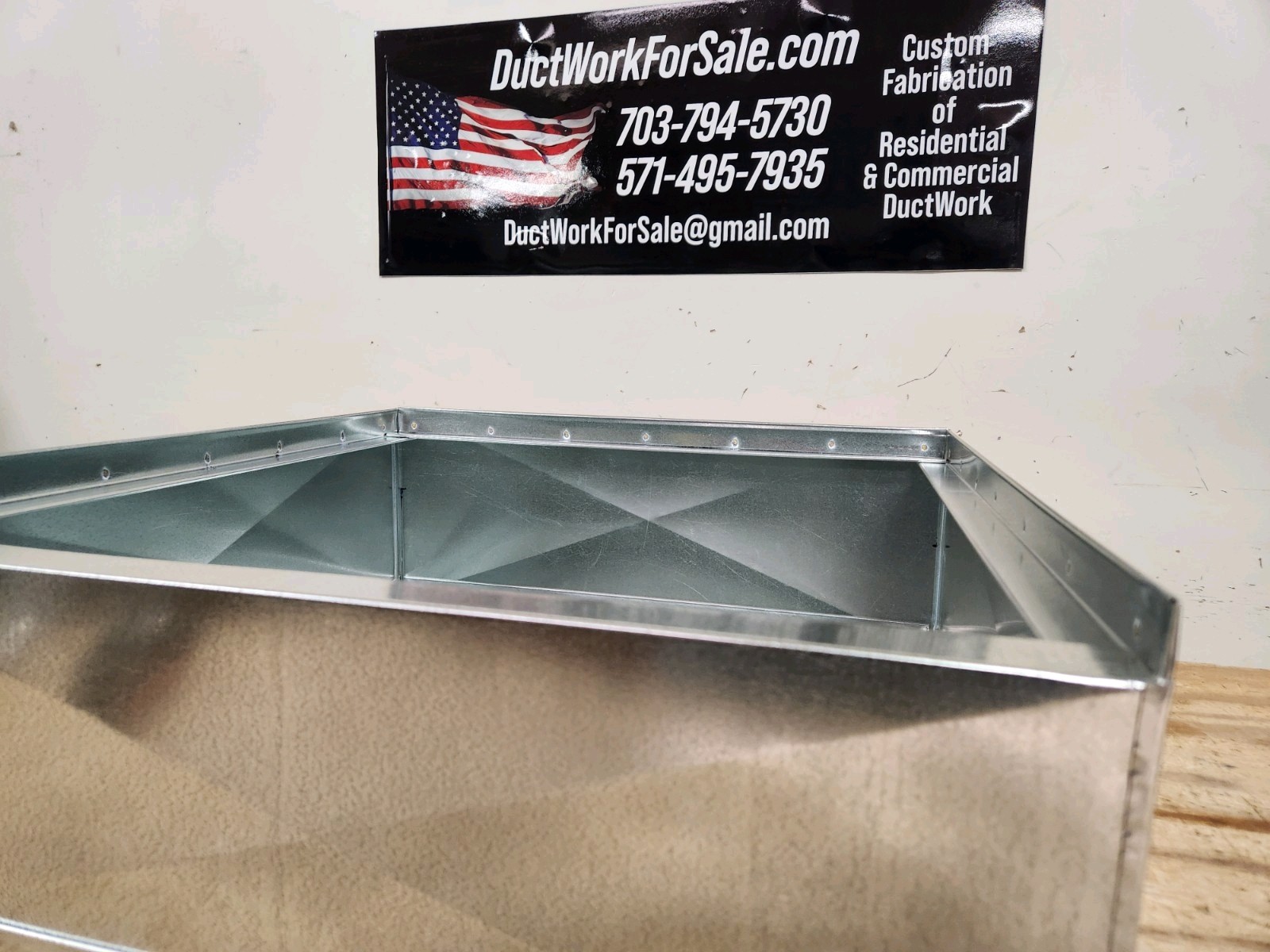

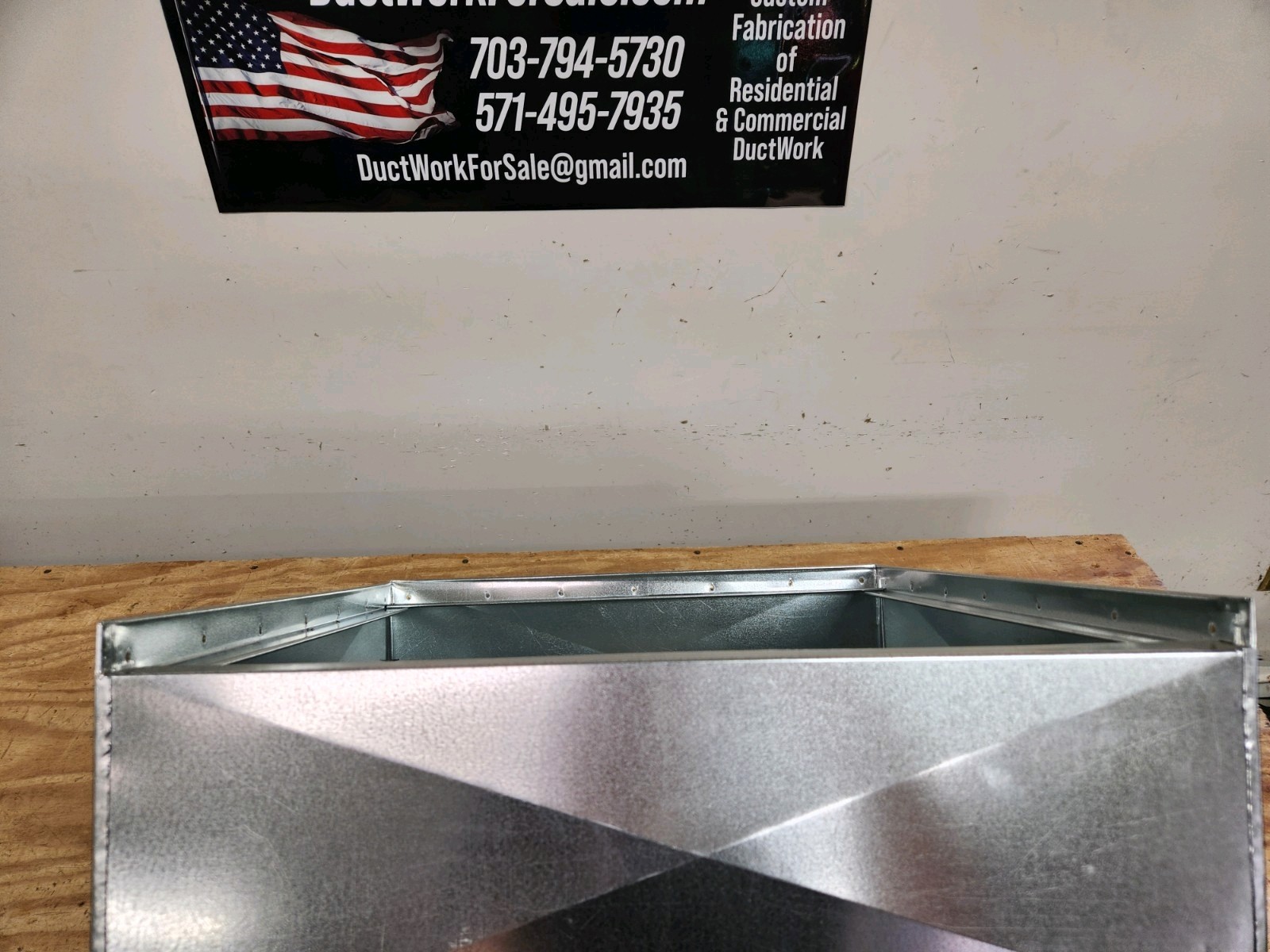

The 17.5"x21"x11" kit is the rectangular starting point, with an 11-inch height and a footprint that's narrower than it is deep. The kit includes the four side pieces, bottom cap, four slips, foil tape, and screws, and the descriptions point to 26-gauge galvanized steel with 22-gauge support rails. The concrete limitation is the 17.5-inch short side. If the stand opening is closer to 21 inches on that side, this box will not cover as much surface as the 21 1/4-inch square option, so measure both directions before you order.
#### 21 1/4 "x21 1/4"x 11" tall furnace stand return air box duct hvac
For a square opening, the 21 1/4 "x21 1/4"x 11" is the one that matches on both axes. The footprint is a true square in this group, and the 11-inch height keeps it consistent with the two other 11-inch-tall boxes. The trade-off is footprint size: at 21.25 inches per side, it occupies more floor area than the 17.5"x21" option. If the opening you're covering is rectangular, the square shape may not align as directly with the duct, so treat this as the choice for a square plenum or stand.
#### 14.5"x23"x10" tall furnace stand return air box duct hvac
The 14.5"x23"x10" stands out as the shortest box in the set, with a 10-inch height and a 14.5-by-23-inch footprint. The lower height can be useful when vertical clearance under the furnace stand is tight, and the long 23-inch dimension gives a different orientation than the 17.5"x21" box. The limitation is the narrow 14.5-inch short side, which is the smallest width of the four. If your return opening is wider than 14.5 inches on that side, this box will have the most exposed area, so check the opening width against the duct before choosing it.
#### 21"x28"x11" tall furnace stand return air box duct hvac
With a 21"x28" footprint, this is the largest of the four return air boxes. It keeps the 11-inch height of the two other tall boxes while adding the most surface area, which can be helpful when the return opening is bigger than 21 inches on one side. The downside is the 28-inch length, which needs more floor space than the 17.5"x21" or 14.5"x23" boxes. If the furnace stand is positioned close to a wall or in an alcove, measure the clearance before selecting this one.
Which should you choose?
- Choose the 17.5"x21"x11" if the return opening is rectangular and closer to 17.5 inches on the short side.
- Choose the 21 1/4 "x21 1/4"x 11" if you're working with a square opening near 21 inches per side.
- Choose the 14.5"x23"x10" when vertical clearance is tighter or the opening is oriented along a 23-inch run.
- Choose the 21"x28"x11" when you need the most coverage across a larger return area.
