Choosing the right piece for your ventilation ducting air distribution can feel like a puzzle. Do you need to throw conditioned air into a room, return air back to the unit, move air through a long duct run, or connect a furnace to the supply trunk? Each job calls for a different component. Here are four options-a two-pack of Krueger 6600 diffusers, a 22-gauge return air box, a 6-inch inline duct fan, and a galvanized supply plenum-so you can see what fits your project and your budget.
Quick take
The four options span a wide range of purposes. The Krueger pair is for supply-air distribution through a ceiling, the return air box is for a floor or equipment stand, the inline fan moves air through ducting, and the plenum connects the furnace to the duct system. Price-wise, the diffuser set is the entry point, while the heavy-duty return air box costs the most.
Listed price comparison
| Product | Listed price | Relative price |
|---|---|---|
| Krueger 6600 perforated diffusers (2 grills) | USD 50.00 | |
| 6" waterproof inline duct fan | USD 90.42 | |
| 19x23x36 supply air plenum | USD 145.75 | |
| HVAC stand return air box duct | USD 259.00 |
How to choose by job
- Ceiling supply diffusion: Krueger 6600 diffusers
- Supporting a furnace or air handler: HVAC stand return air box duct
- Moving air through ducting: 6" inline duct fan
- Connecting equipment to the supply trunk: rectangular supply plenum
Product notes
Krueger 6600 perforated diffusers (2 grills)

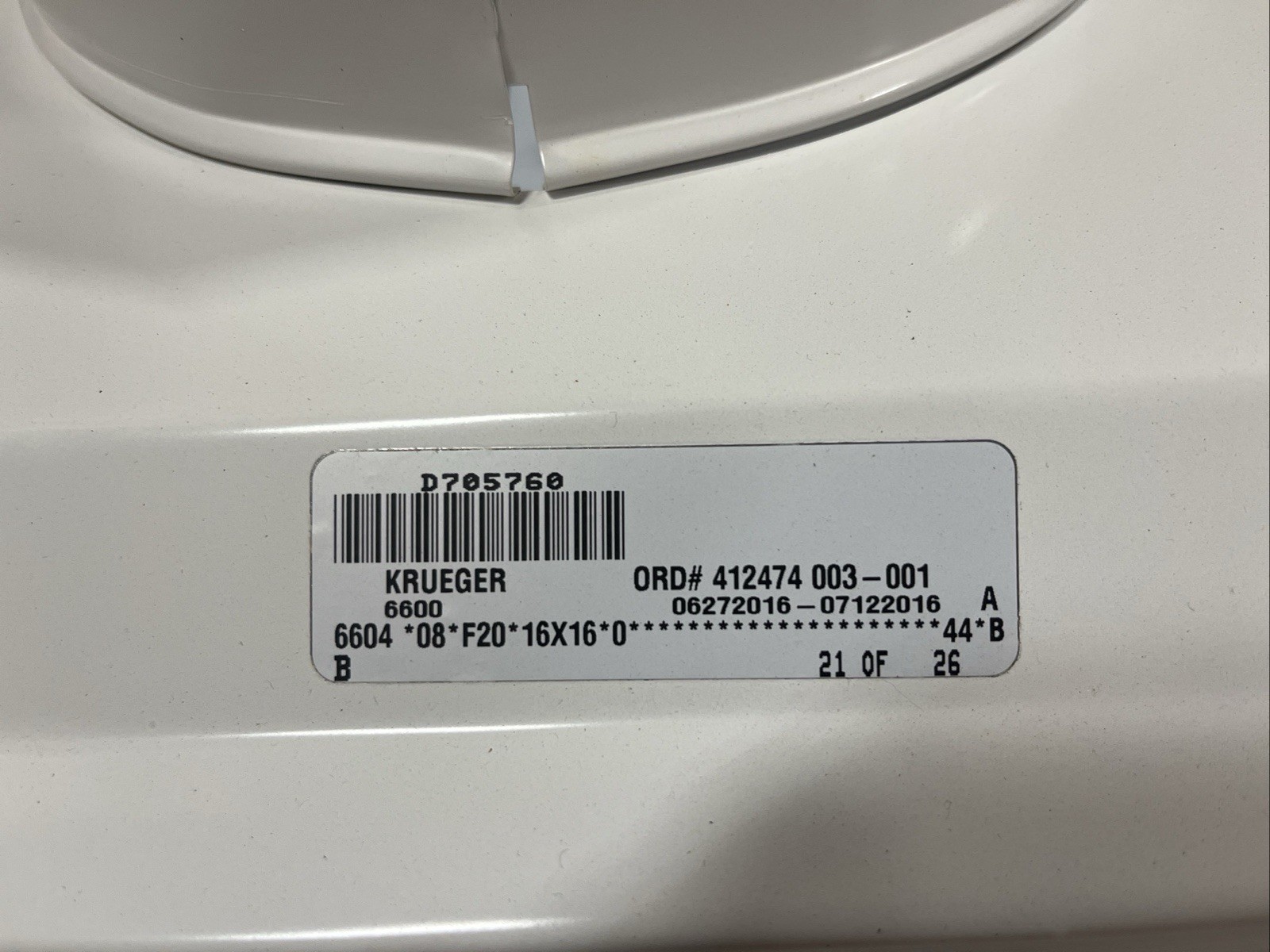

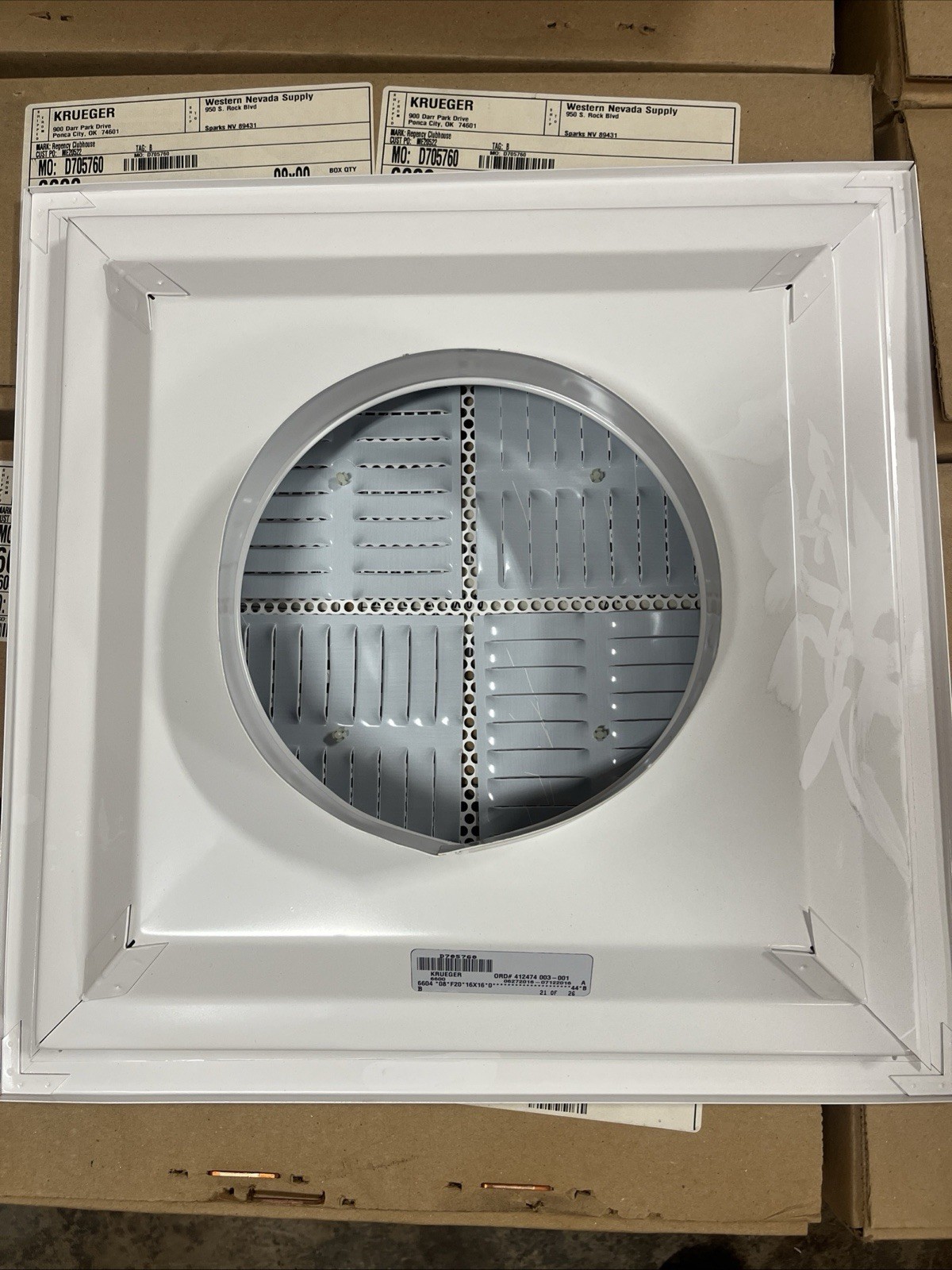

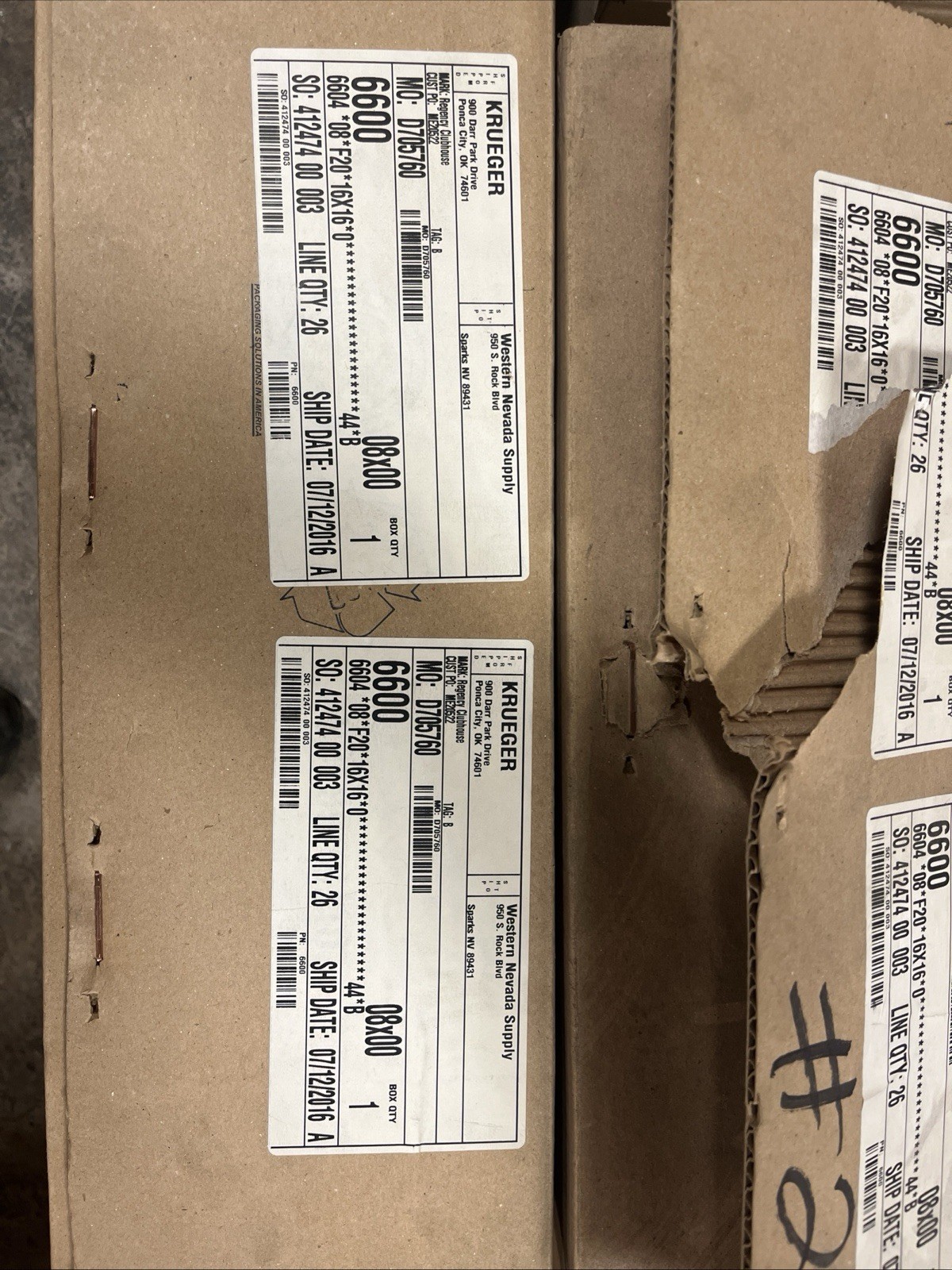

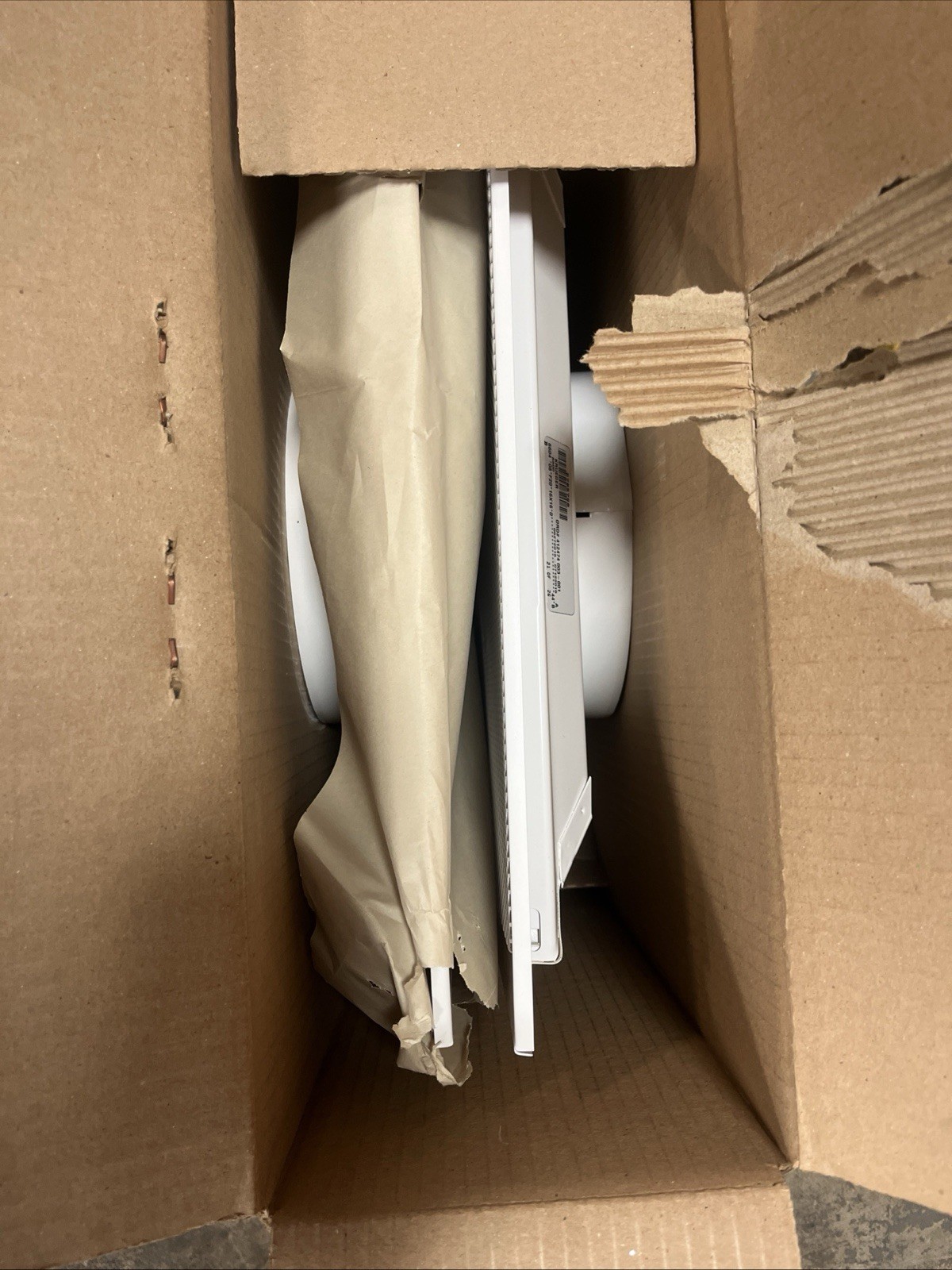

Listed as new open box, this order gives you a box of two 16x16 diffusers with an 8-inch throat and a white aluminum face. The modular air pattern controllers are factory set for 4-way discharge and can be adjusted for 1, 2, or 3-way patterns, or removed for down blow. Typical isothermal throws run 12 to 17 feet for 4-way and 21 to 30 feet for 1-way, so it suits rooms where you want air spread widely or directed. One reason to choose it: you get two grills for one listed price. The limitation: it's an open-box listing, and if you only need one diffuser, you'll have a spare.
HVAC stand return air box duct

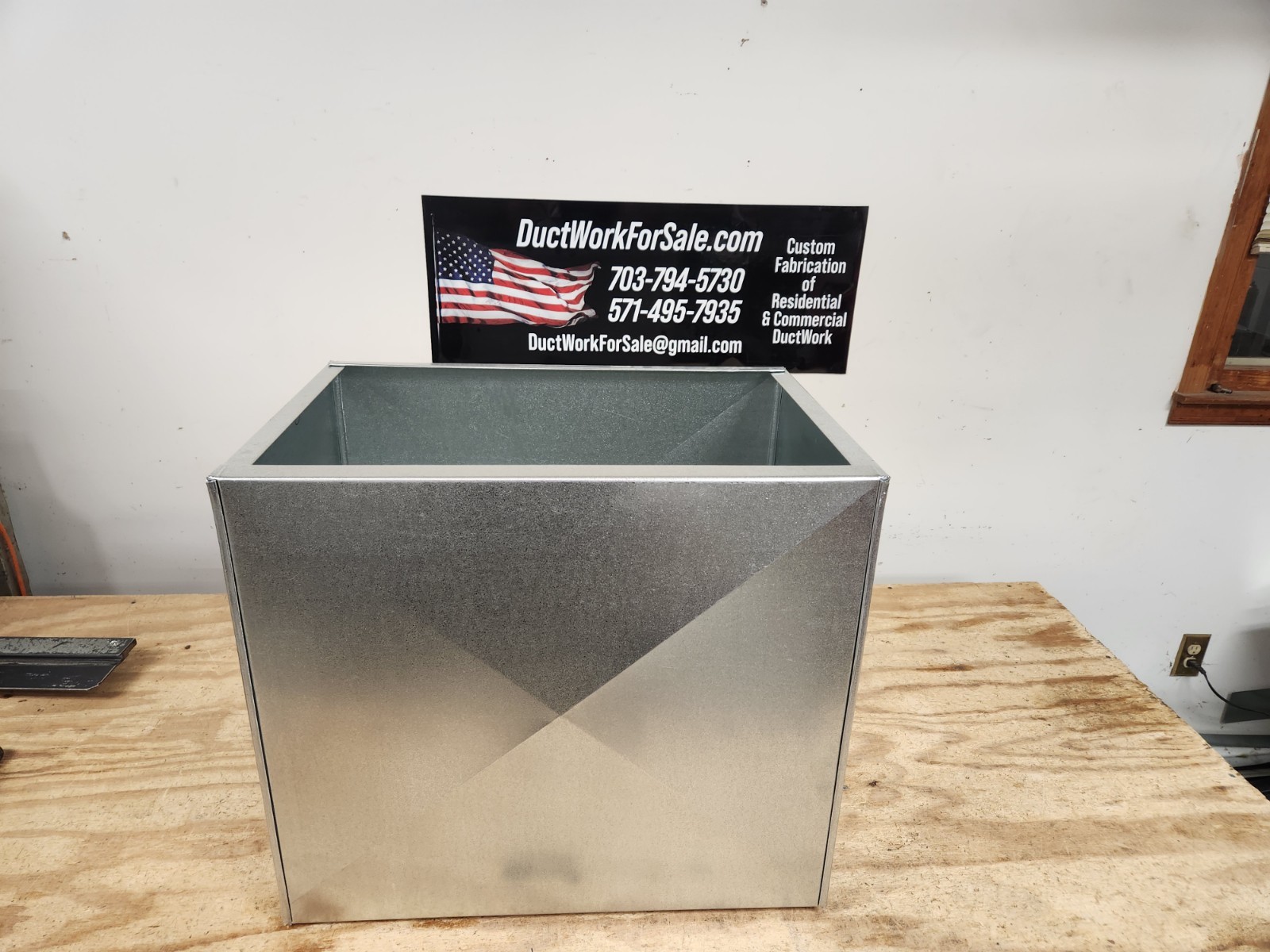

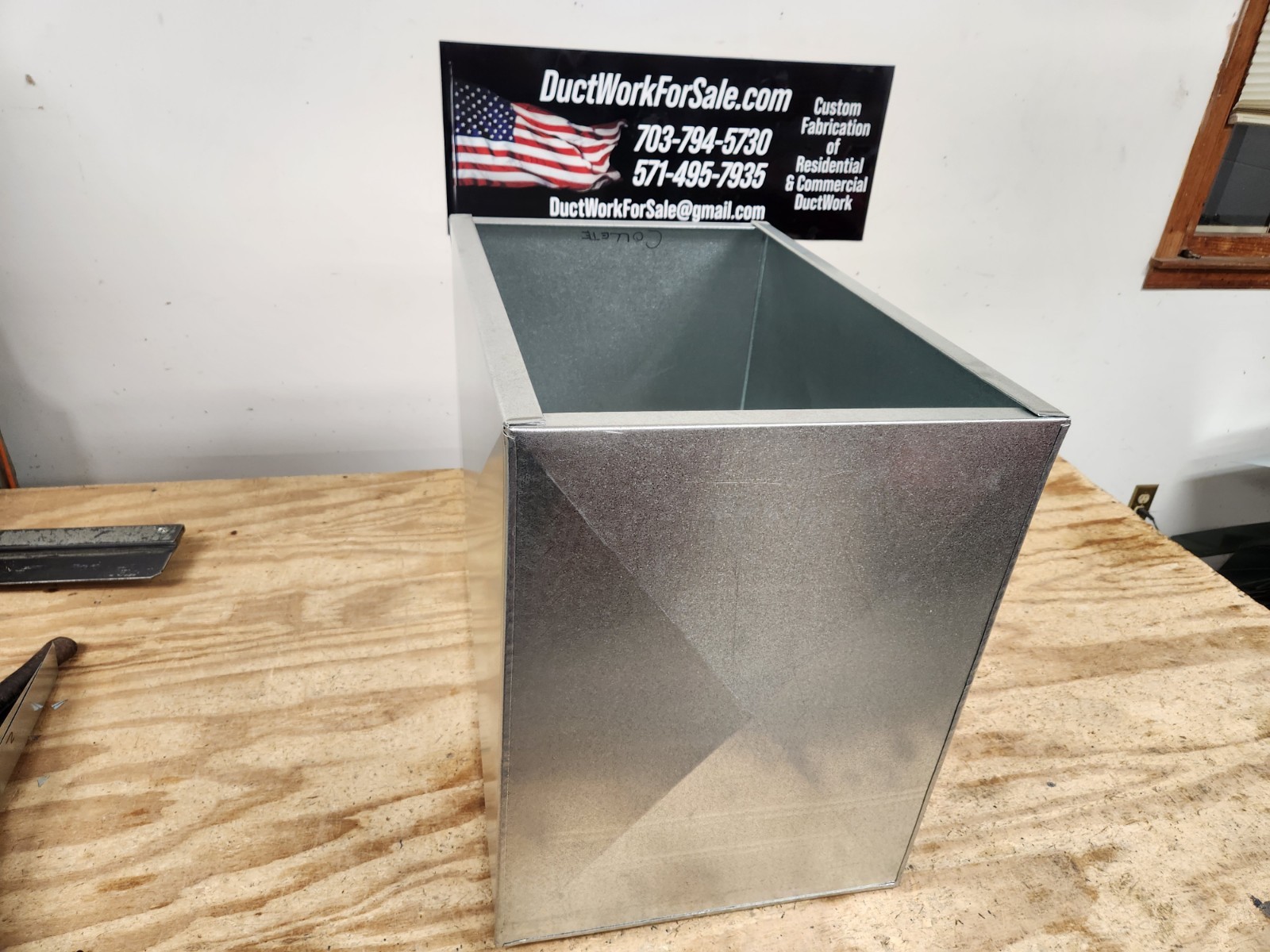

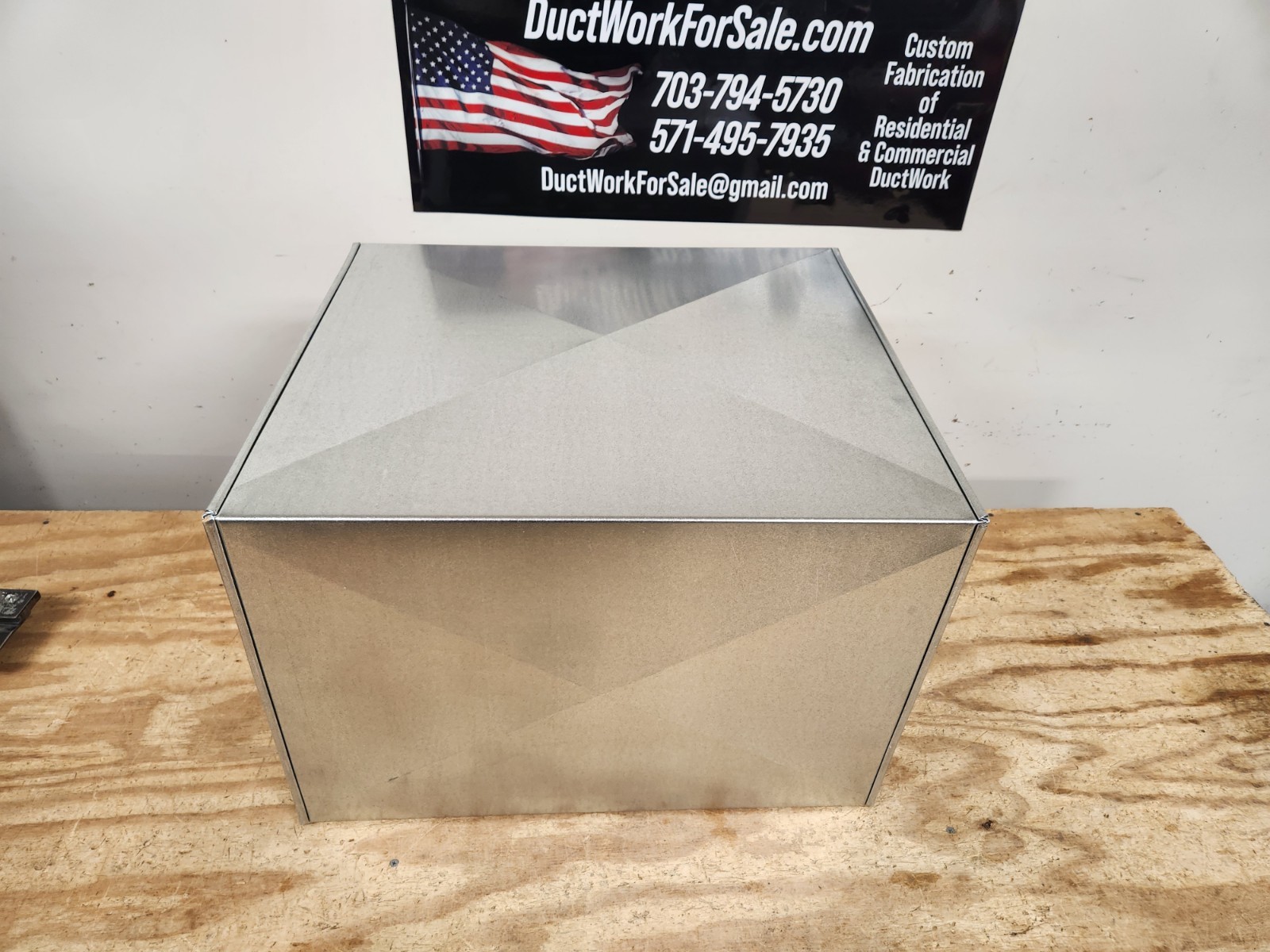

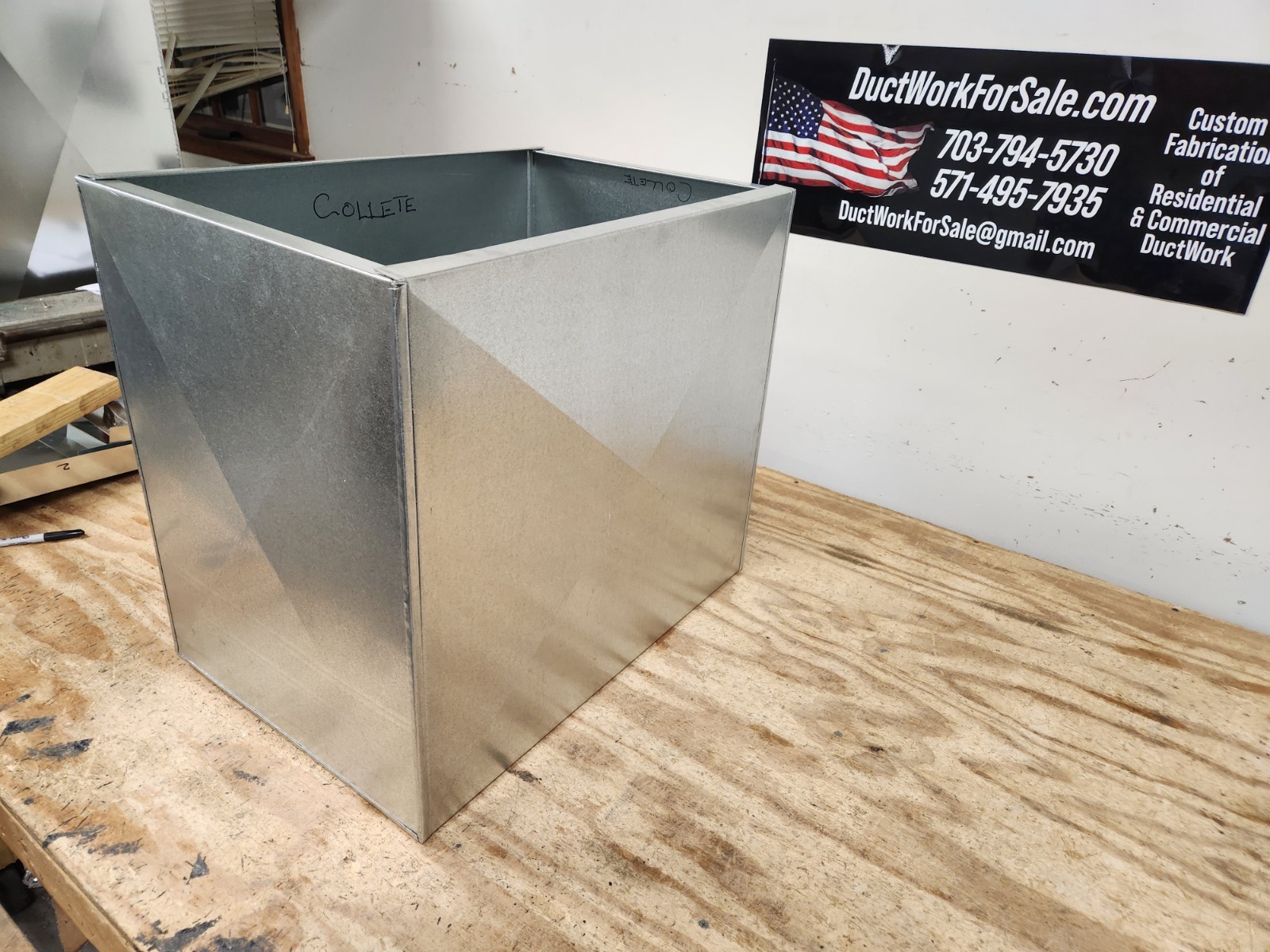

This 17.5" x 21" x 16" tall box is made from 22-gauge galvanized G90 metal with a 1-inch hem edge turned inside for strength. It's hand fabricated in Virginia using American sheet metal, and it's designed to support heavy equipment, so it works as a return air box or an equipment stand. The reason to pick it: heavy-duty construction with a hemmed edge, not a flange. The limitation: it's the costliest of these four components, and the fixed footprint may not fit every mechanical closet.
6" waterproof inline duct fan
This inline duct fan moves 418 CFM at 3150 rpm while drawing 115 watts, and the IP67 rating means it can handle moisture. The 6-inch inlet/outlet matches standard duct runs, and the white housing is made of ABS and stainless steel. It's designed for kitchens, bathrooms, greenhouses, basements, warehouses, and similar spaces. Reason to choose: IP67 waterproofing and a solid airflow spec for a 6-inch fan. Limitation: it's a fan, not an entire duct system-you'll still need to integrate it into your own supply or exhaust piping.
19x23x36 supply air plenum
This 19x23x36 galvanized steel plenum is built for supply air and works with both updraft and downdraft installations. It's listed as compatible with a broad range of HVAC systems, from central furnaces and heat pumps to ductless mini splits and packaged rooftop units. The 26-gauge steel construction is lighter than the stand return air box, but for a plenum that connects equipment to the trunk line, that's often enough. Reason to choose: a rectangular plenum sized for common furnace connections, with new condition and U.S. origin noted. Limitation: the fixed dimensions won't adapt to a non-matching duct opening without additional transition.
Final recommendation by use case
If your goal is to distribute cool or warm air into a living space, the Krueger 6600 diffusers at $50.00 are a straightforward, low-cost start-perfect for a room that needs even airflow. If you need to support a heavy air handler or furnace while returning air, the $259.00 stand return air box gives you 22-gauge G90 metal and a hemmed edge. For moving air down a duct run, especially in a damp area, the $90.42 inline fan brings 418 CFM and IP67 waterproof protection. And if you're joining a furnace or air handler to the supply ductwork, the $145.75 supply plenum is sized for a common supply connection.
